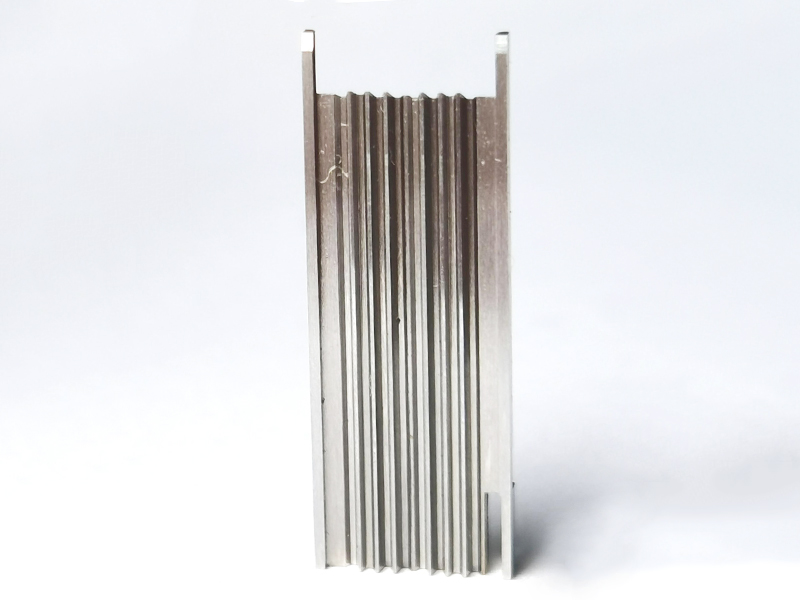

【Origin Pic】	Mould parts For Type C connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKING Size: 25.105 X 1.94 X 1.906mm Features:The teeth are thin, with a slope, and the clear angle is within 0.03 Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	VIKWG
Size	25.105 X 1.94 X 1.906mm
Features	Thin teeth, sloped, clear angle within 0.03
Challenge	The head teeth are easy to grind and deform, and the size is difficult to control.

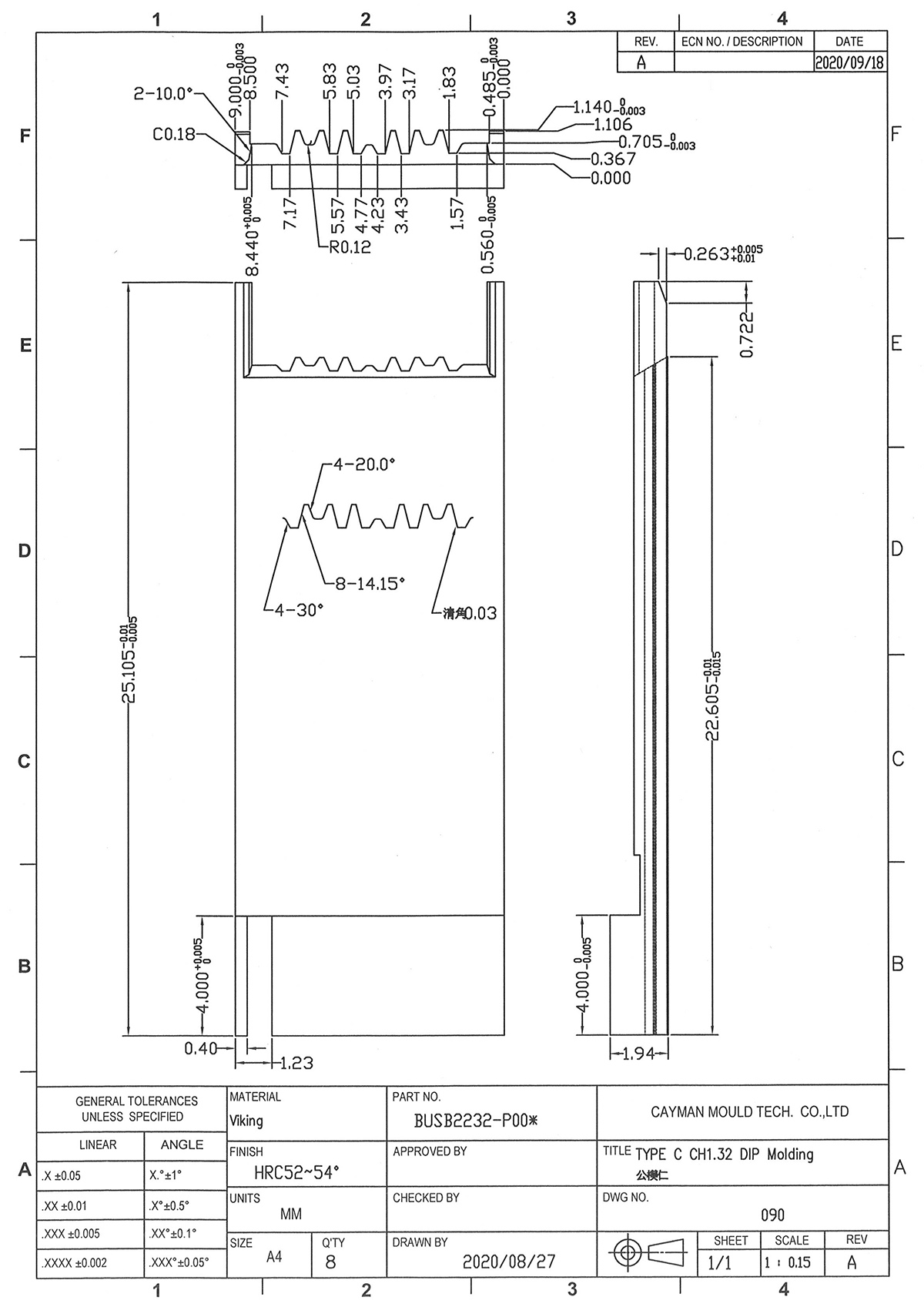

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness. The process adopts grooving on both sides to repair the deformation.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the Tenori grinding wheel.
4. Select technicians with rich experience in processing technology
