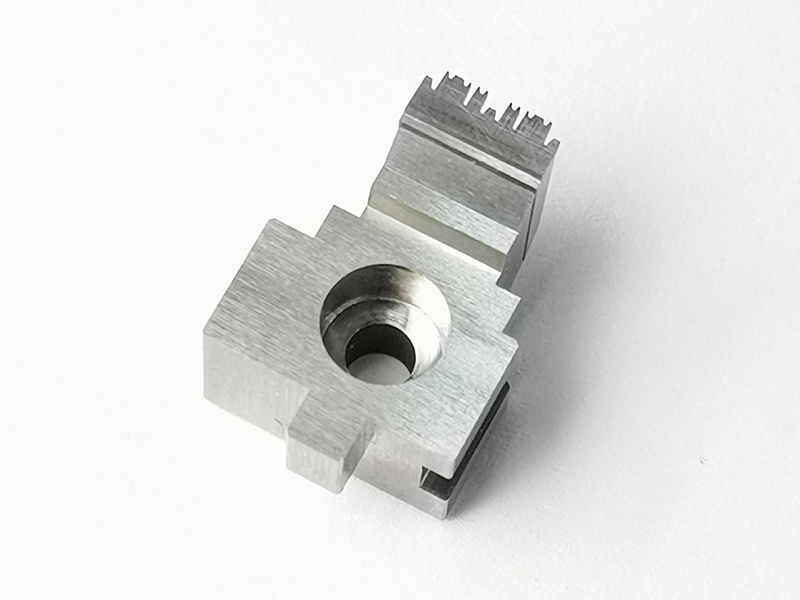

【Origin Pic】	Mould parts For Type C connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKING Size: 13.30 X 8.2 X 18.240MM Features: All grooves, bevels, R0.05 on the head, and other solid fittings can not be assembled together without gaps and improper assembly Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	VIKING
Size	13.30 X 8.2 X 18.240MM
Features	All grooves, bevels, R0.05 on the head, and other solid fittings can be assembled together without gaps and improper assembly
Processing	PG processing Assembled together, there should be no gaps under the microscope.
Challenge	The workpiece small head groove, bevel and R have high precision requirements, and it is required to be matched with other workpieces for processing.

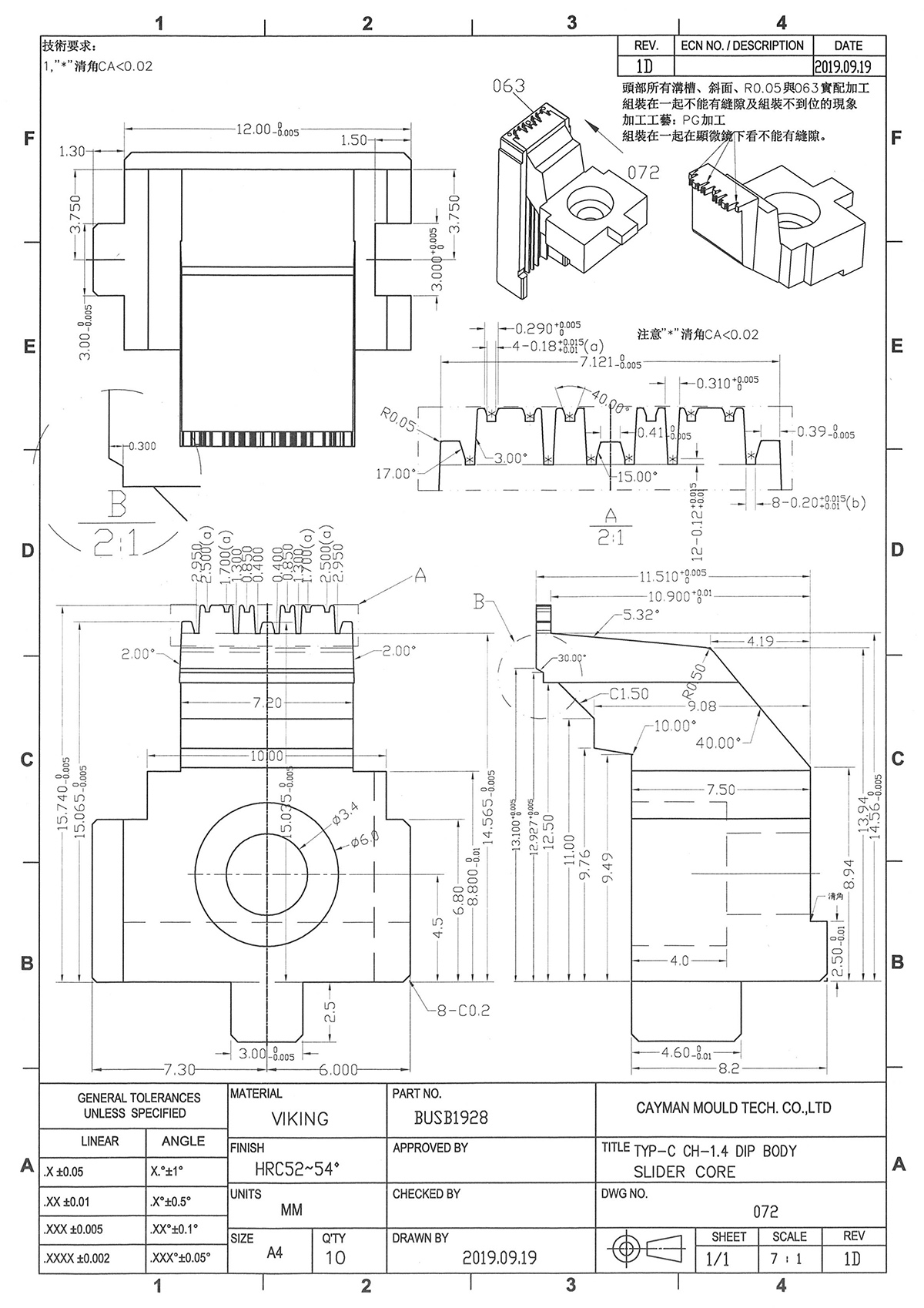

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Choose PG optical grinding to ensure the accuracy of head groove and slope.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
5. Select technicians with rich experience in processing technology
