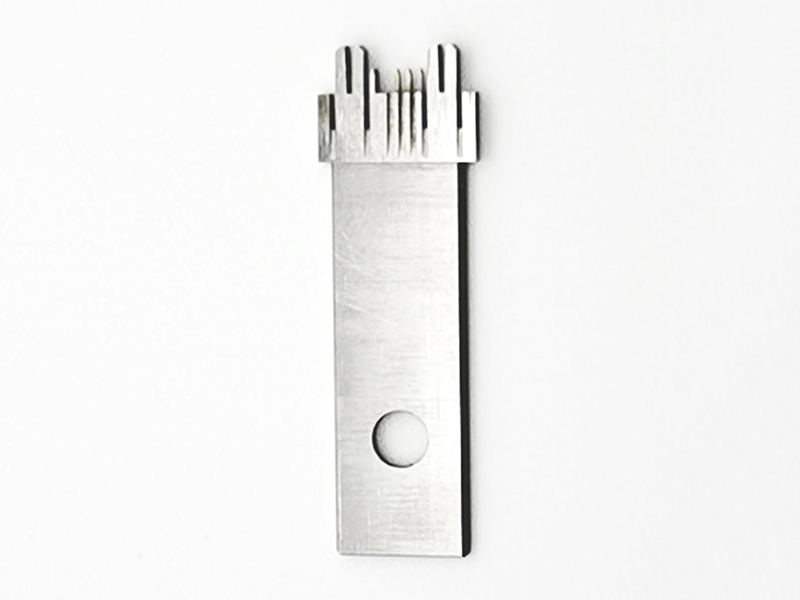

Mould parts For Type C connectors

Download drawings (PDF format) Download drawings (DWG format)

Material: ASSAB VIKING(Ultra-Cryogenic Treatment)

Size: 0.846 X 6.84 X 21.657MM

Features: The main body is 0.600mm, suitable for processing with other workpieces; the head groove is small, the top of the tooth is at least 0.09mm, and the groove is deep and tapered

Wearable
High stability
High temperature strength

[View original photo] [BACK]

[Previous page]

Product parameters

Materials	ASSAB VIKING (Ultra-Cryogenic Treatment)
Size	0.846 X 6.84 X 21.657MM
Features	The main body is 0.600mm, suitable for processing with other workpieces; the head groove is small, the upper part of the tooth is at least 0.09mm, and the groove is deep and sloped
Challenge	The tooth of the workpiece head is small and thin, the groove width is 0.270mm, the groove depth is 3.75mm, and the tooth center control should be accurate

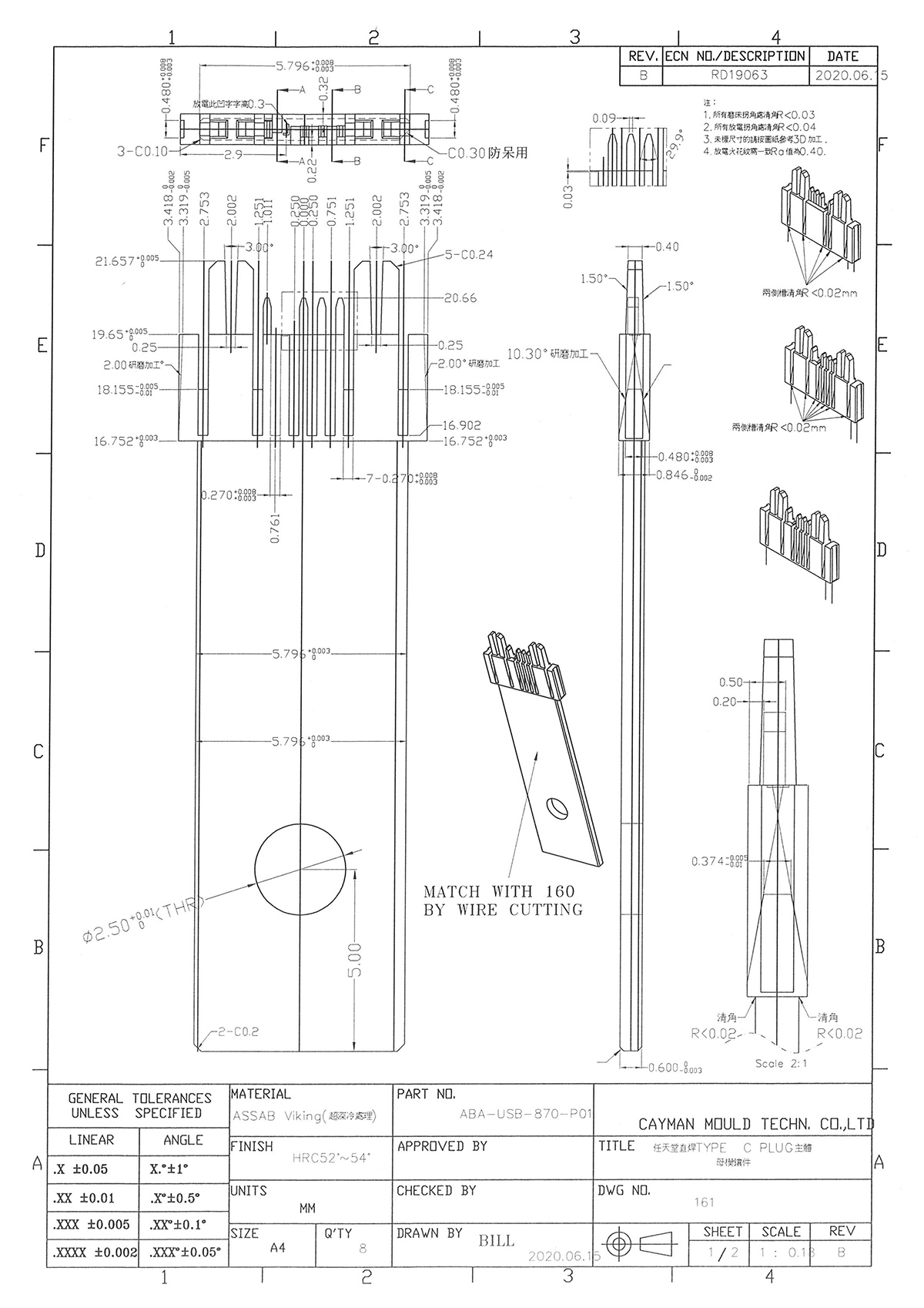

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select processing equipment with tight spindle deflection and qualified accuracy parameters.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
4. Select technicians with rich experience in processing technology
