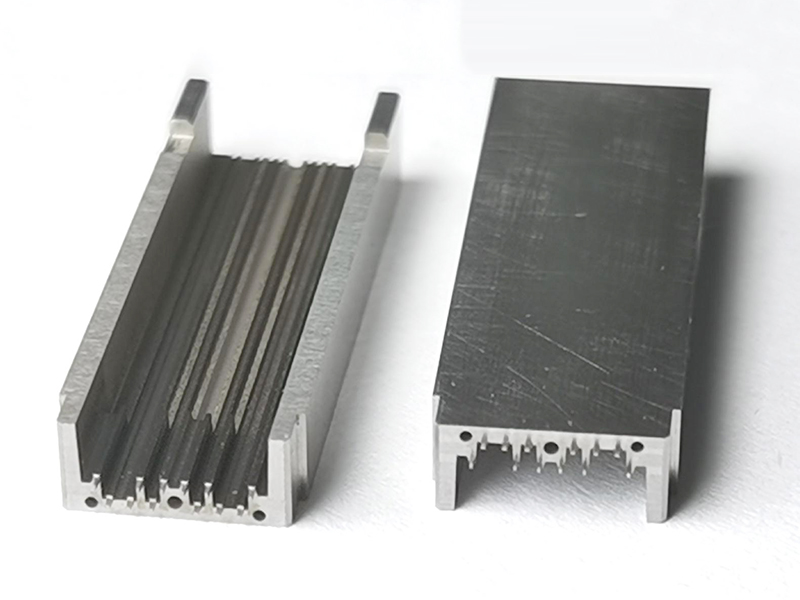

【Origin Pic】	Mould parts For Type C connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKING Size: 9.40 X 3.886 X 27.24MM Features: The head column is 0.16mm, the groove depth is 0.430, small grooves are formed by grinding, and there are inclined surfaces, which can be used closely with other workpieces Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	VIKING
Size	9.40 X 3.886 X 27.24MM
Features	The head column is 0.16mm, the groove depth is 0.430, and the small groove is ground and has a sloped surface. It is used closely with other workpieces.
Challenge	The workpiece is small and thin, and the head groove and slope are easily deformed by grinding. This workpiece needs to be tightly matched with other workpieces

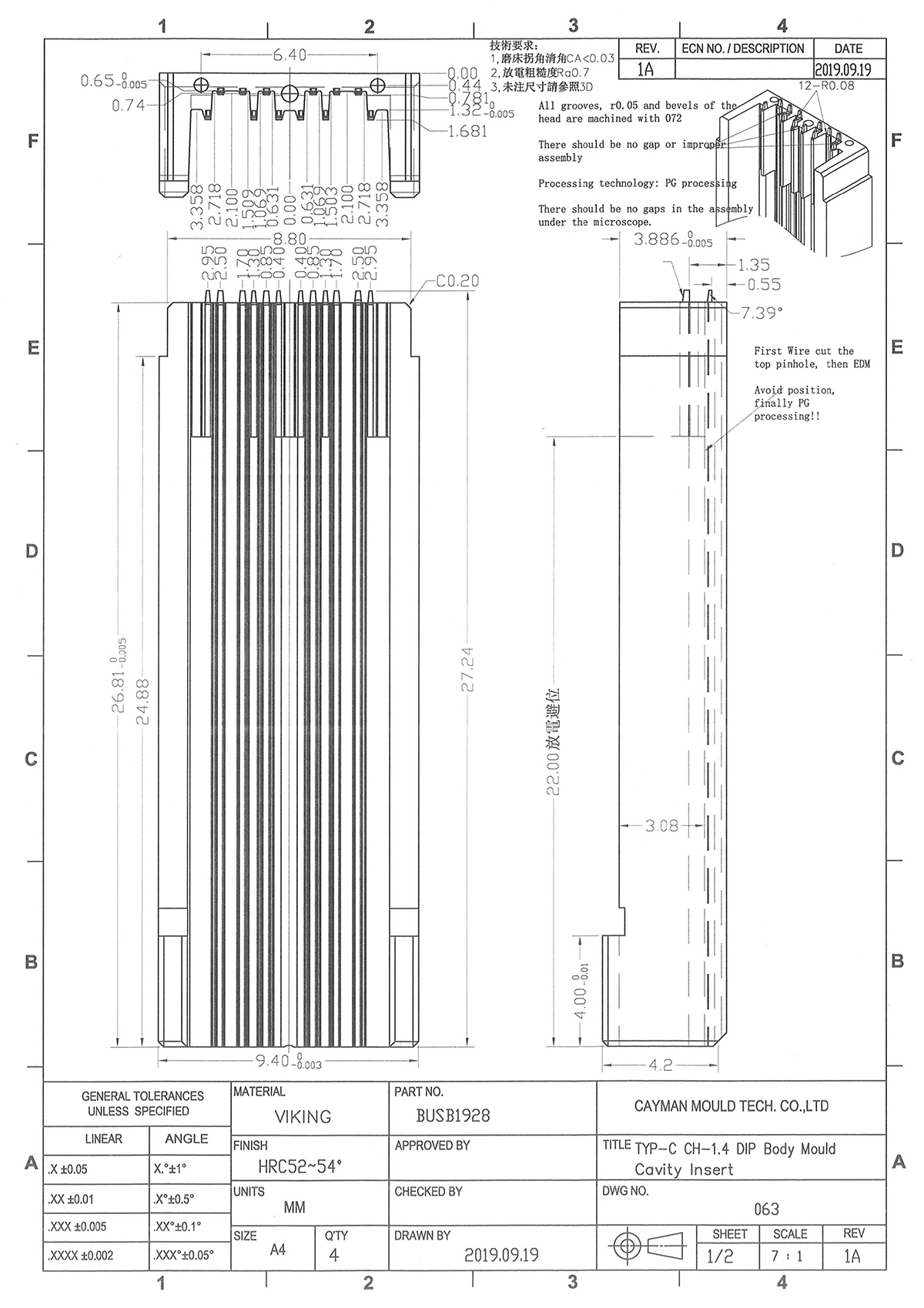

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Choose PG optical grinding to ensure the accuracy of head groove and slope.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
4. Select technicians with rich experience in processing technology
