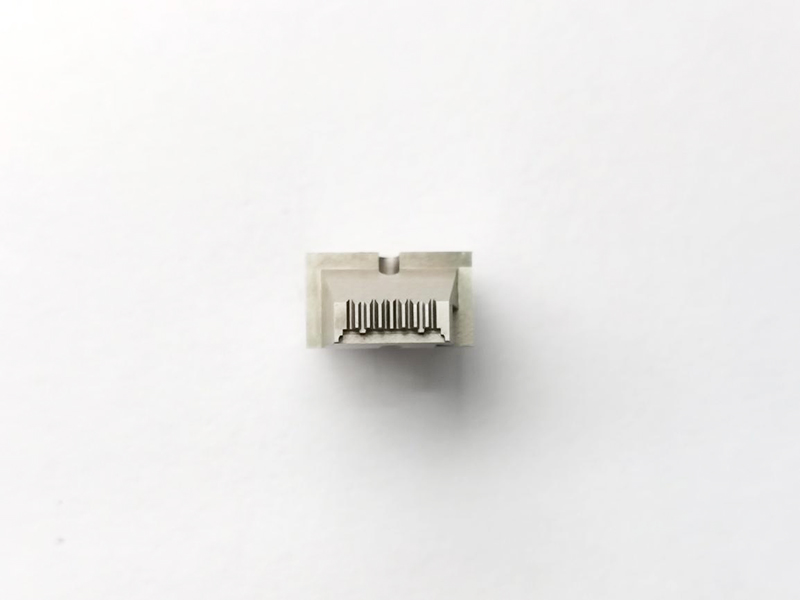

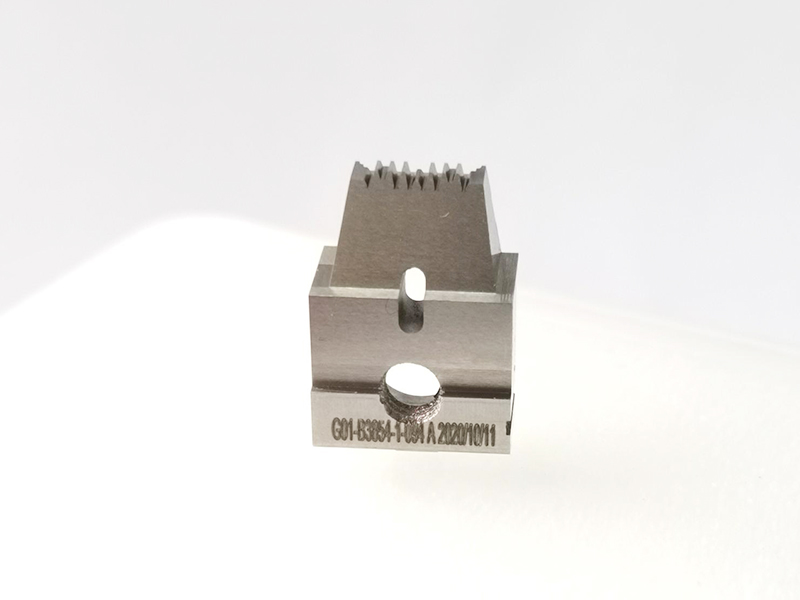

【Origin Pic】	Mould parts For Type C connectors Download drawings (PDF format) Download drawings (DWG format) Materials: ELMAX Size: 12.00 X 7.955 X 16.014mm Features: The workpiece size is small, the bevel of the tooth is required to be closely matched with other workpieces, the groove width is 0.205, and the grinding angle is within 0.02 Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	ELMAX
Size	12.00 X 7.955 X 16.014mm
Features	The size of the workpiece is small, the bevel of the tooth needs to be closely matched with other workpieces, the groove width is 0.205, and the grinding angle is within 0.02
Challenge	High precision requirements for bevel grinding

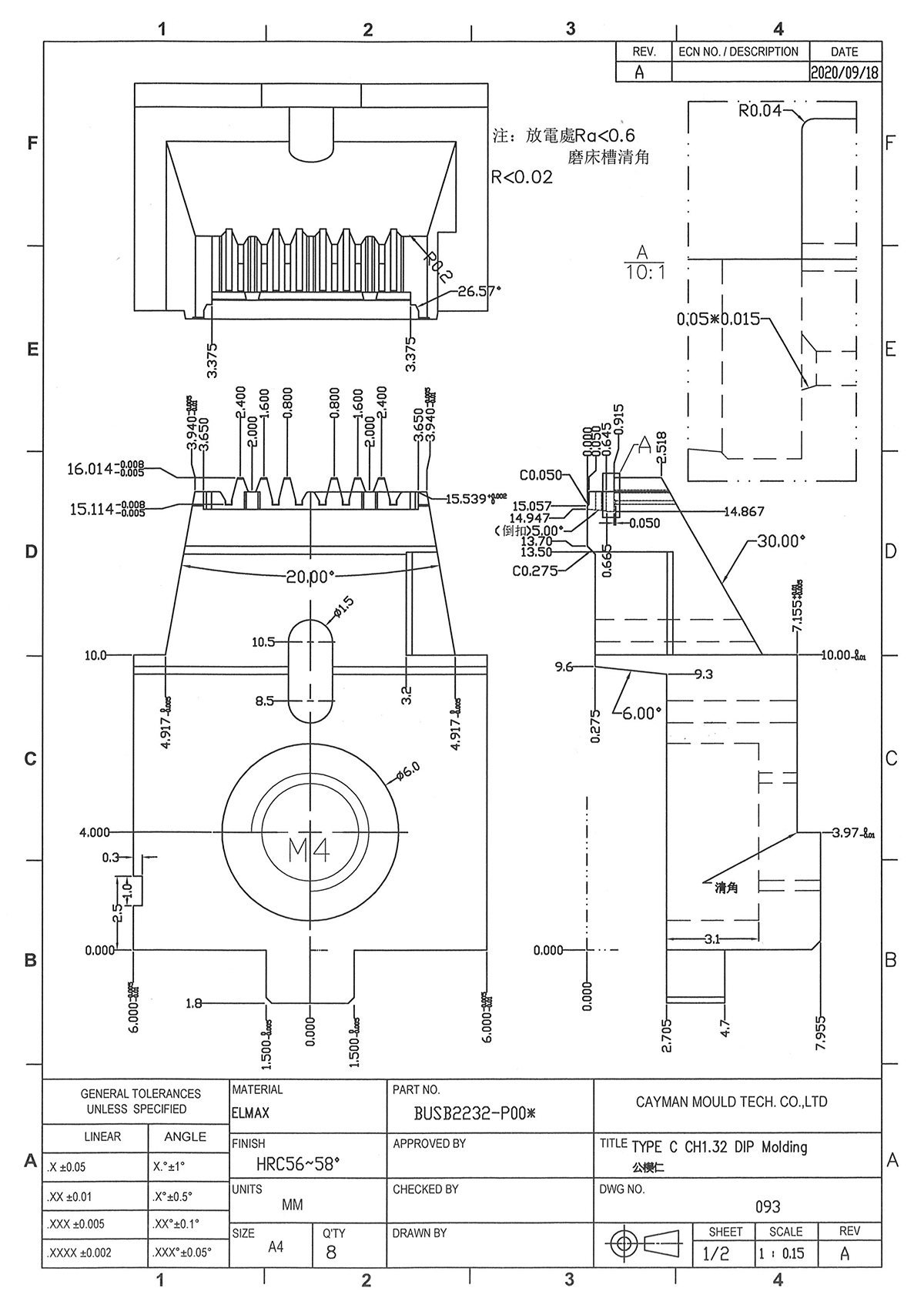

Drawings display

Solution

1. Material selection ELMAX, high wear resistance, corrosion resistance, good stability and low maintenance cost.
2. First tapping, cutting holes, then PG processing, and finally EDM;
3. Select the PG optical grinder to grind the groove bevel, control the accuracy and perform adaptive processing.
4. Select technicians with rich experience in processing technology
