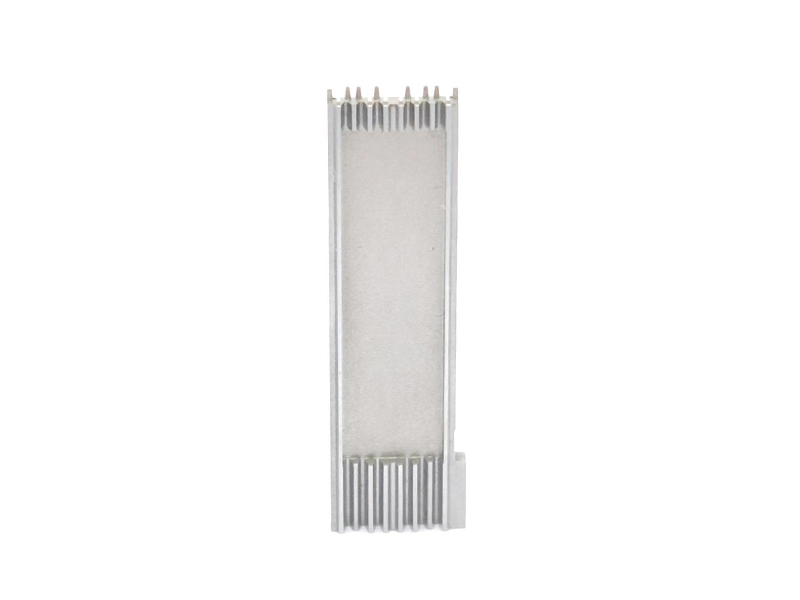

ould parts For Type C connectors

Download drawings (PDF format) Download drawings (DWG format)

Materials: ELMAX

Size: 7.35 X 1.589 X 24.399mm

Features: The size of the workpiece is small, the bevel of the tooth is required to be closely matched with other workpieces, the small teeth of the head are formed by electric discharge, the groove width is 0.205, and the clearance angle is within 0.03

Wearable
High stability
High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	ELMAX
Size	7.35 X 1.589 X 24.399mm
Features	The size of the workpiece is small, the bevel of the tooth is required to be closely matched with other workpieces, the small teeth of the head are formed by discharge, the groove width is 0.205, and the clearance angle is within 0.03
Challenge	The grinding precision of the inclined surface is high, the groove is small, the thimble hole is not allowed to discharge and fry the edge, and the large area in the middle is easy to deform.

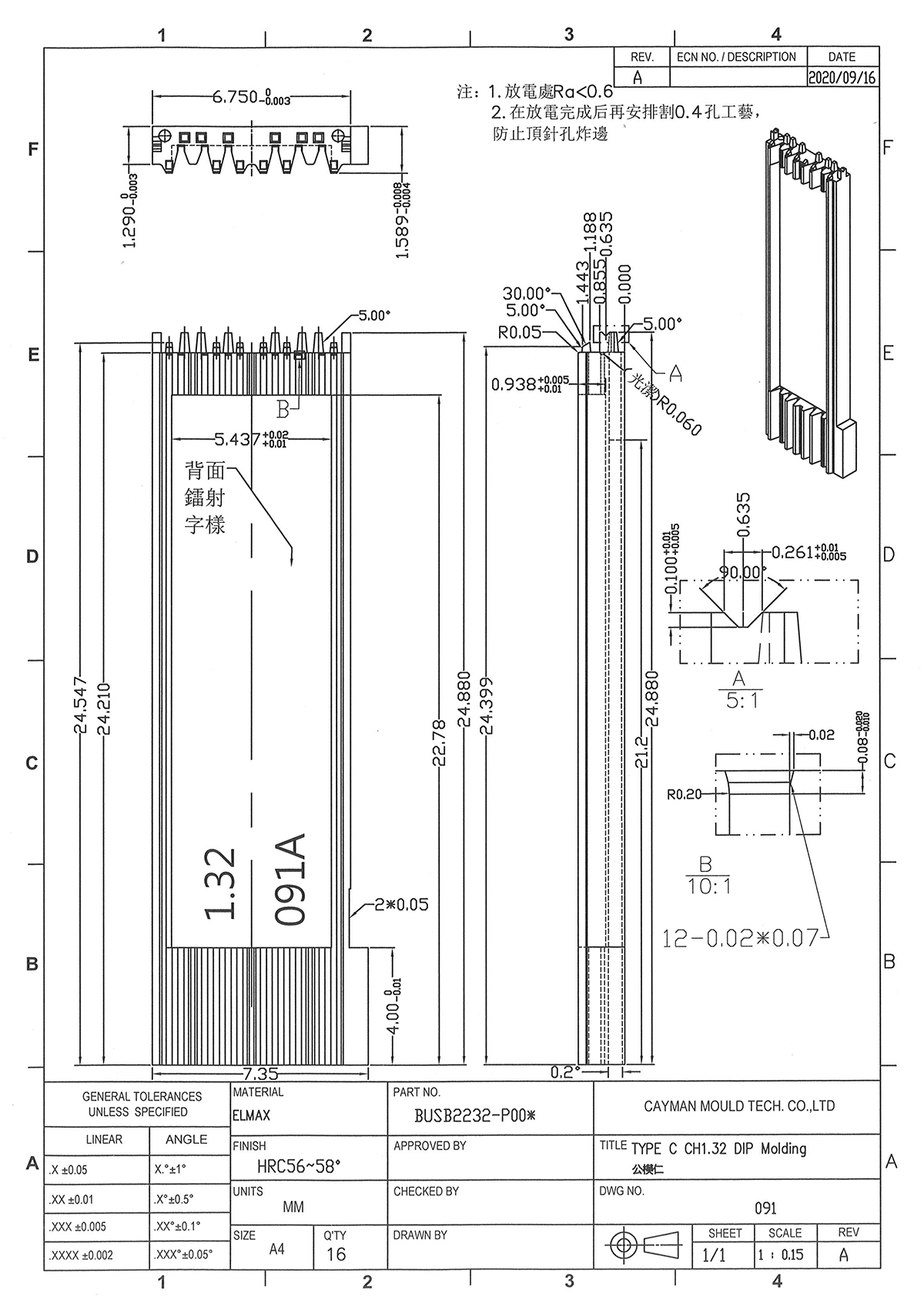

Drawings display

Solution

1. Material selection ELMAX, high wear resistance, corrosion resistance, good stability and low maintenance cost.
2. After the discharge of the head is completed, cut the 0.4 thimble hole with the slow-moving wire to prevent frying; the middle large surface is ground first, the discharge is roughened, and then the fine discharge machining is in place;
3. Select the PG optical grinder to grind the groove bevel, control the accuracy and perform adaptive processing.
4. Select technicians with rich experience in processing technology
