Your location Home -> Mould parts -> TYPE C connector mold -> Mould parts For Type C connectors

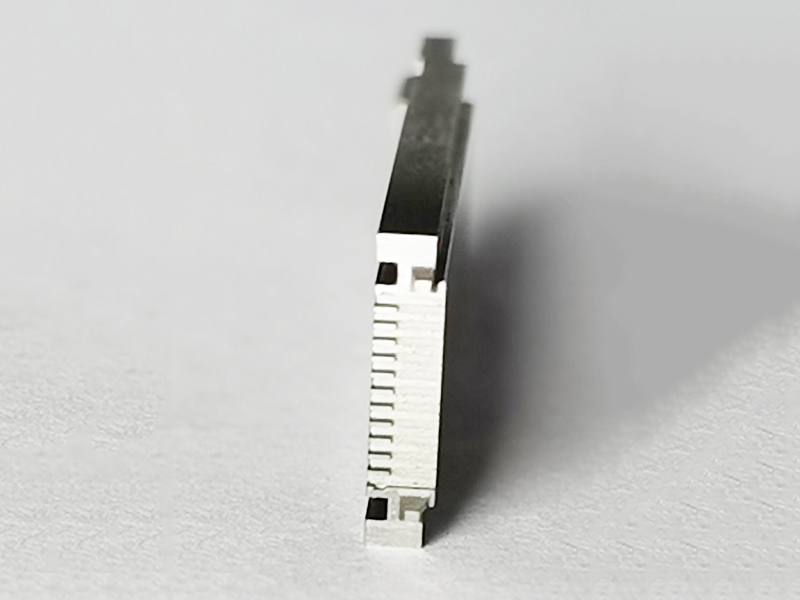

【Origin Pic】	Mould parts For Type C connectors Download drawings (PDF format) Download drawings (DWG format) Materials: ELMAX Size: 25.8 X 2.000 X 9.500MM Features: Slot width 0.25MM, groove depth 0.275 grinding small grooves, row teeth, discharge contact grinding surface, small workpiece Wearable High stability High temperature strength

[View original photo] [BACK]

[Next page]

Product parameters

Materials	ELMAX
Size	25.8 X 2.000 X 9.500MM
Features	Slot width 0.25MM, groove depth 0.275 grinding to open small grooves, row teeth, discharge contact grinding surface, small workpiece
Challenge	Row teeth, small teeth, small grooves, head EDM

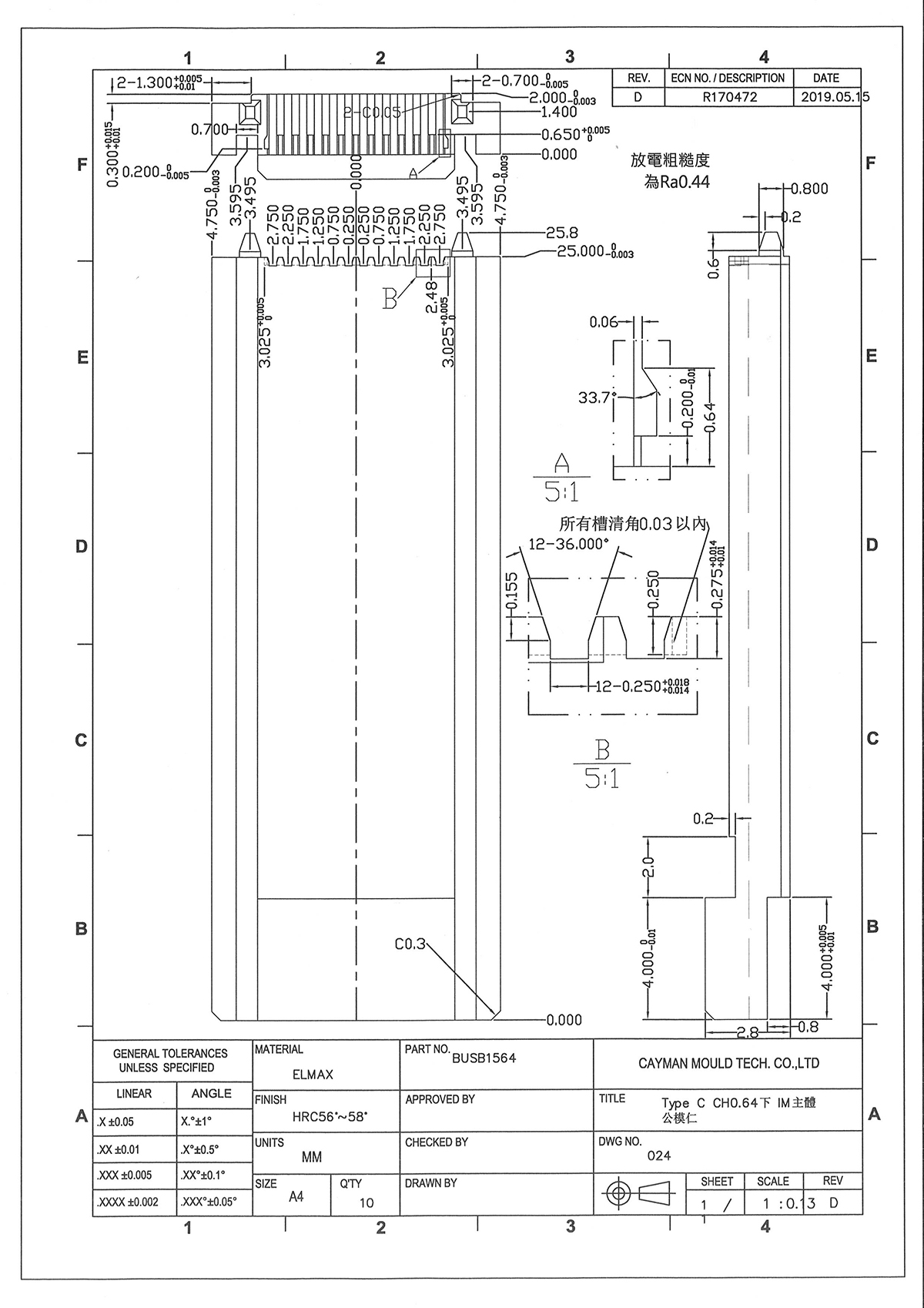

Drawings display

Solution

1. Material selection ELMAX, high wear resistance, corrosion resistance, good stability and low maintenance cost.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
4. Select technicians with rich experience in processing technology

Cayman Mould technologyCMT High-precision mold parts supplier
