Your location Home -> Mould parts -> PCI Connector Mold -> Mould parts For PCI Housing connectors

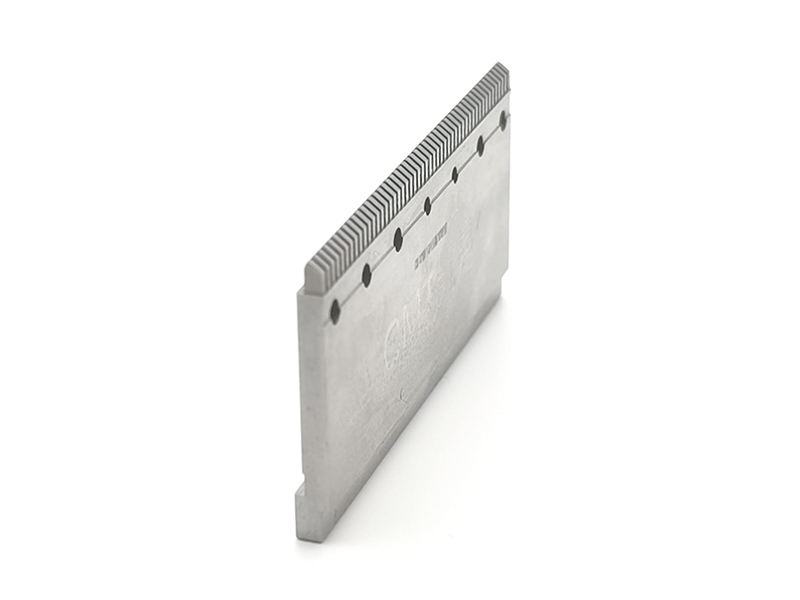

【Origin Pic】	Mould parts For PCI Housing connectors Download drawings (PDF format) Download drawings (DWG format) Material: ASSAB VIKWG(Super Cryogenic Heat Treatment) Size: 49.049 X 3.06 X 21.32mm Features: 49 rows of teeth, the number of teeth is large, the groove width is 0.35MM, and the groove depth is 2.513MM Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	ASSAB VIKWG(Super Cryogenic Heat Treatment)
Size	49.049 X 3.06 X 21.32
Features	49 rows of teeth, the number of teeth is large, the groove width is 0.35MM, and the groove depth is 2.513MM
Challenge	Too many teeth, the center distance is difficult to control

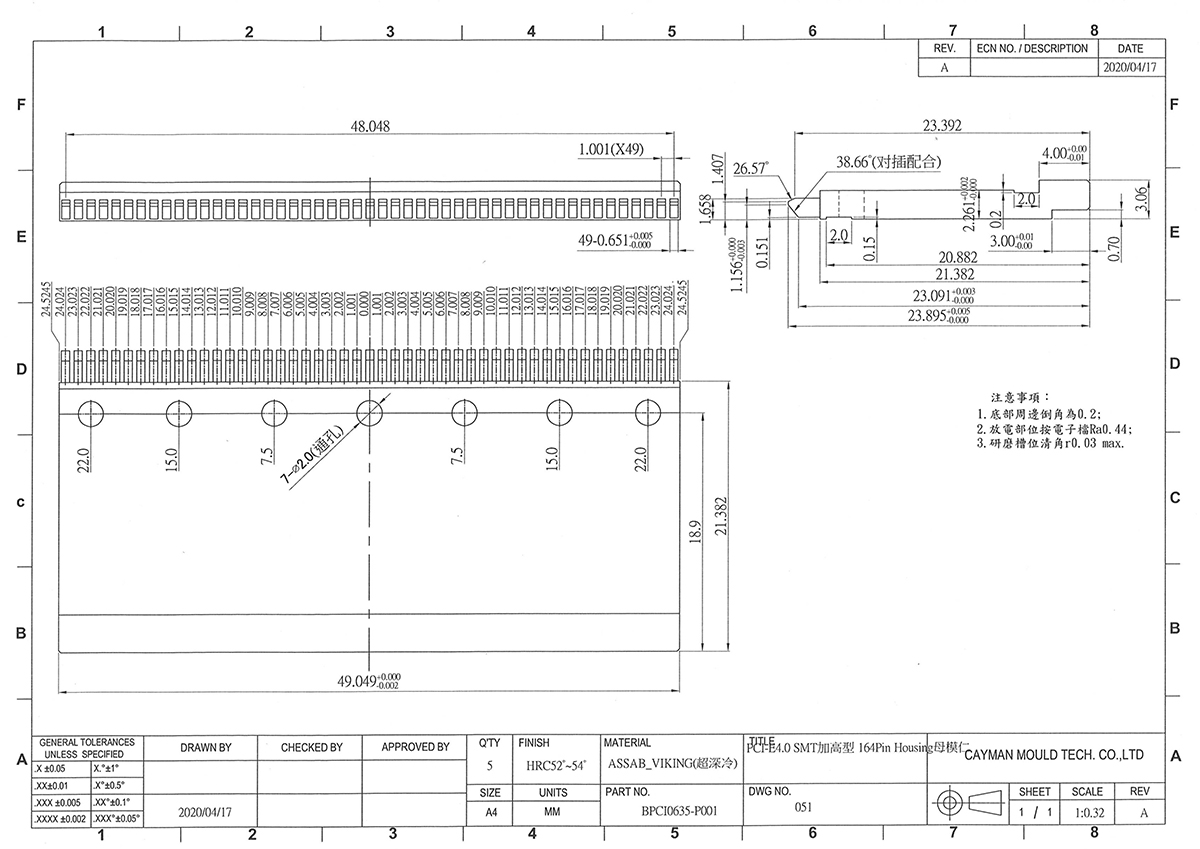

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
4. Select technicians with rich experience in processing technology
