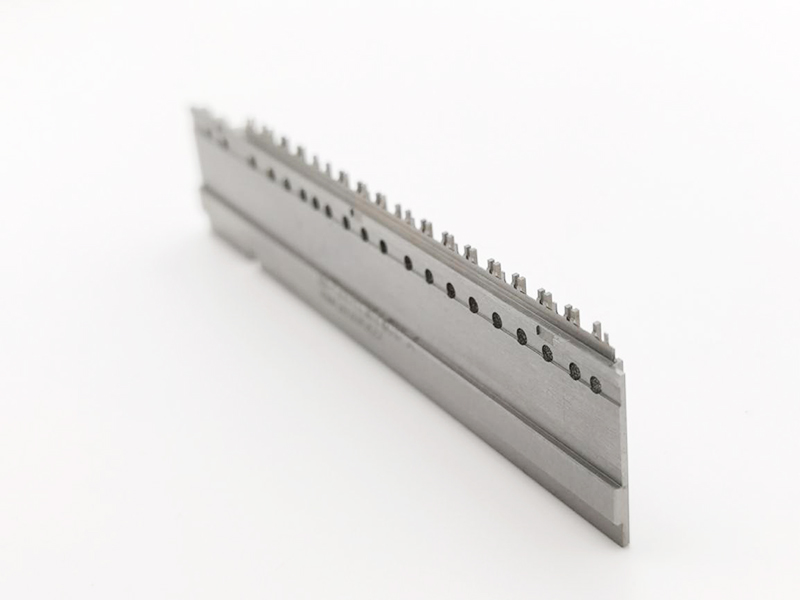

Mould parts For PCI connectors housing

Download drawings (PDF format) Download drawings (DWG format)

Materials: VIKWG

Dimensions: 88.733 x 3.50 x 21.030mm

Features:The row of teeth is slender, there are many teeth, the center distance should be accurate, the teeth are thin, easy to deform, the discharge pattern Ra0.44, the cleaning angle R<0.04mm; the grinding groove position and the cleaning angle R<0.03mm , the accuracy of the parts is required to be done

Wearable
High stability
High temperature strength

[View original photo] [BACK]

[Previous page]

Product parameters

Materials	VIKWG
Size	88.733 x 3.50 x 21.030mm
Features	The row of teeth is slender, there are many teeth, the center distance should be accurate, the teeth are thin, easy to deform, the discharge pattern is Ra0.44, the cleaning angle R<0.04mm; the grinding groove position and the cleaning angle R<0.03mm, the precision of the parts is required to be improved
Challenge	The teeth are easy to break and deform, and the center size is difficult to control

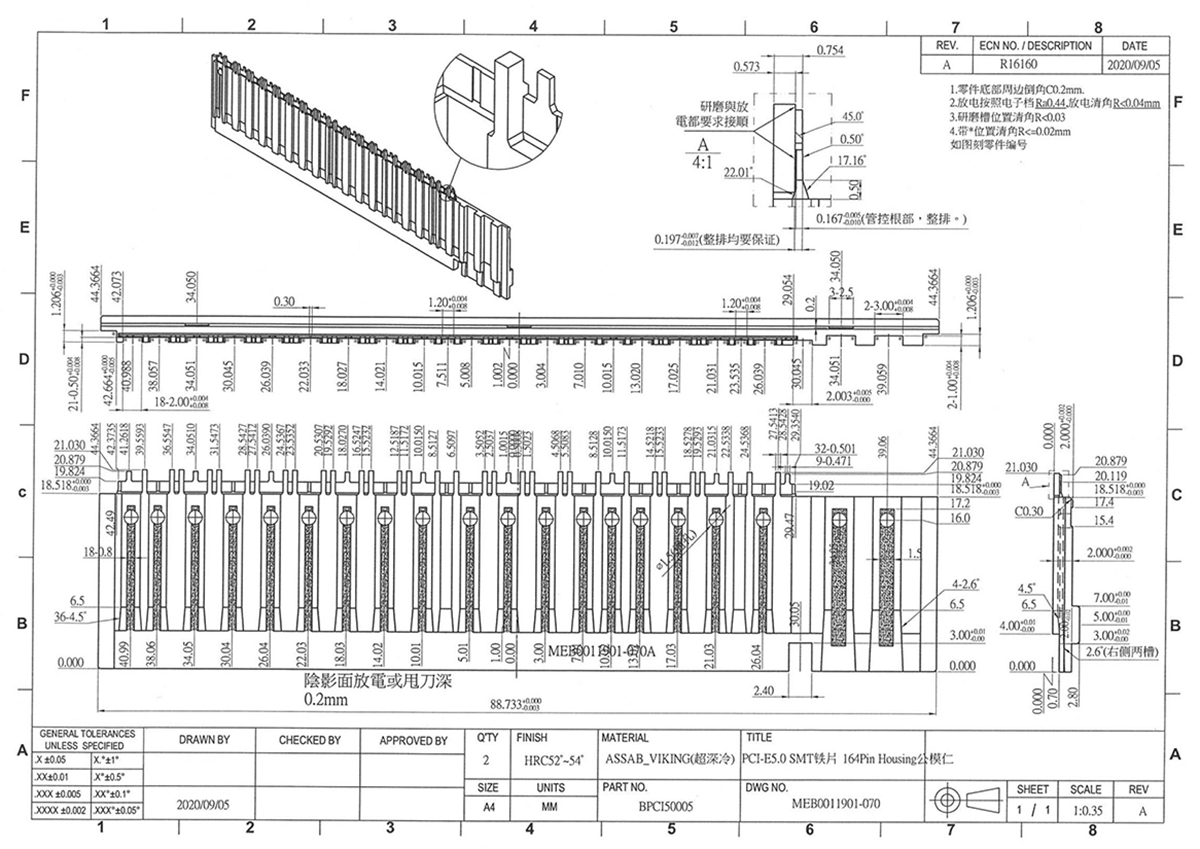

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the Tenori grinding wheel.
4. Select technicians with rich experience in processing technology
