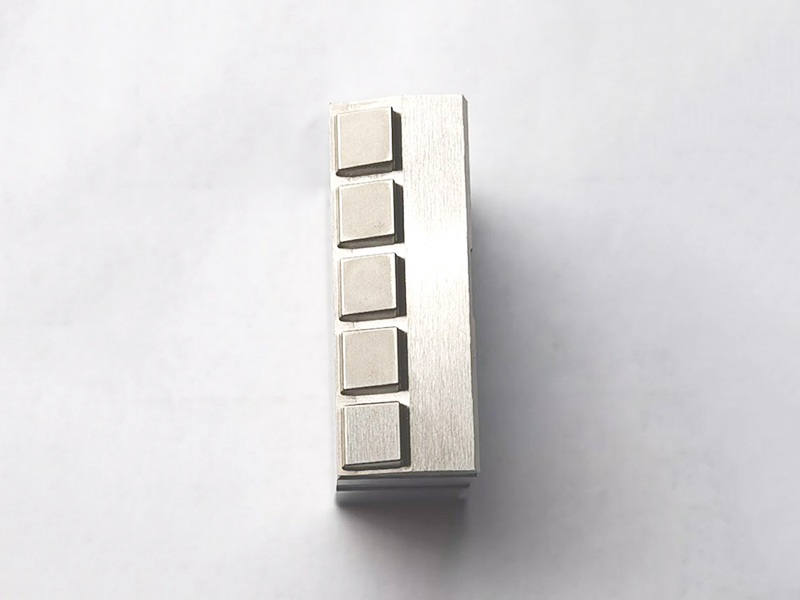

【Origin Pic】	Mould parts For PCI connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKWG Dimensions: 26.026 x 9.696 x 28.12mm Features: Head tooth belt slope, put some sub-mirror surface Wearable High stability High temperature strength

[View original photo] [BACK]

[Next page]

Product parameters

Materials	VIKWG
Size	26.026 x 9.696 x 28.12mm
Features	Head tooth belt slope, put some sub-mirror surface
Challenge	Discharge (EDM) sub-mirror

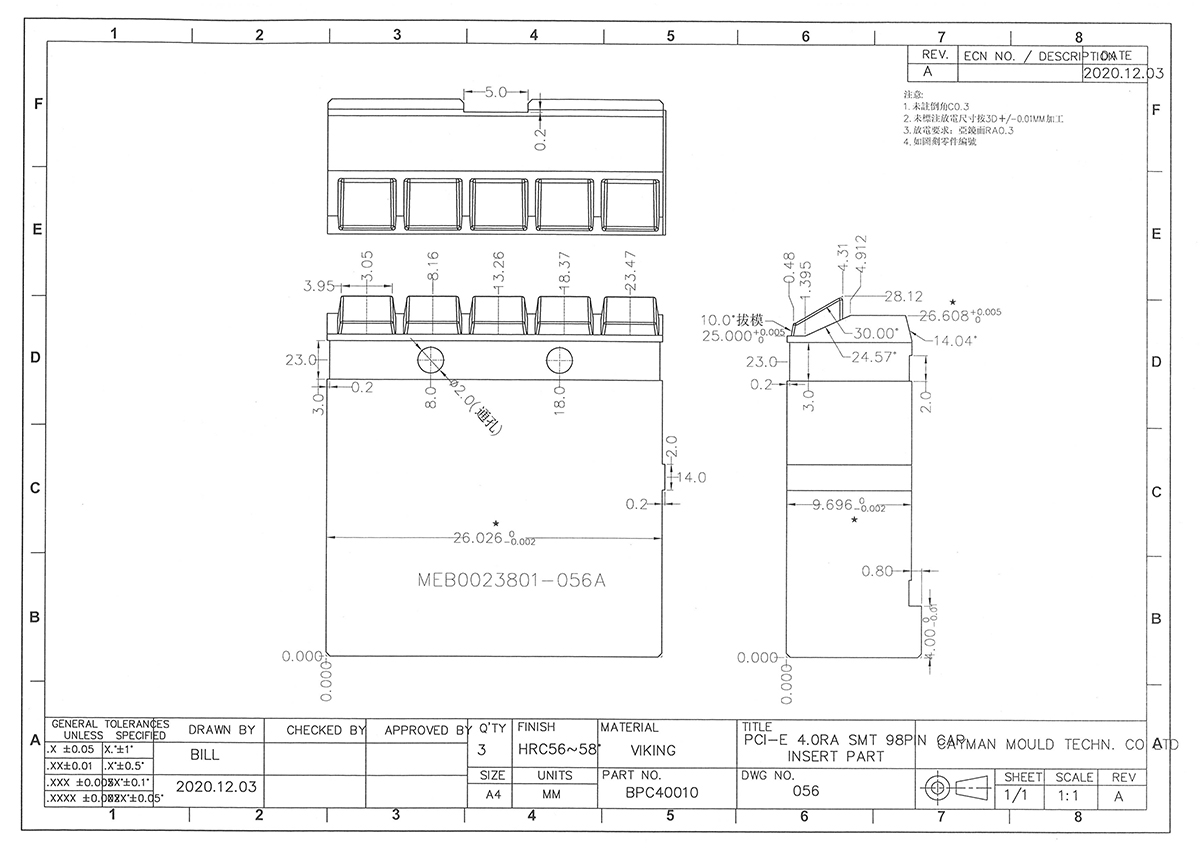

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. High-speed CNC machining copper male to ensure the spark position and the smoothness of the electrode;
3. Select technicians with rich experience in processing technology
