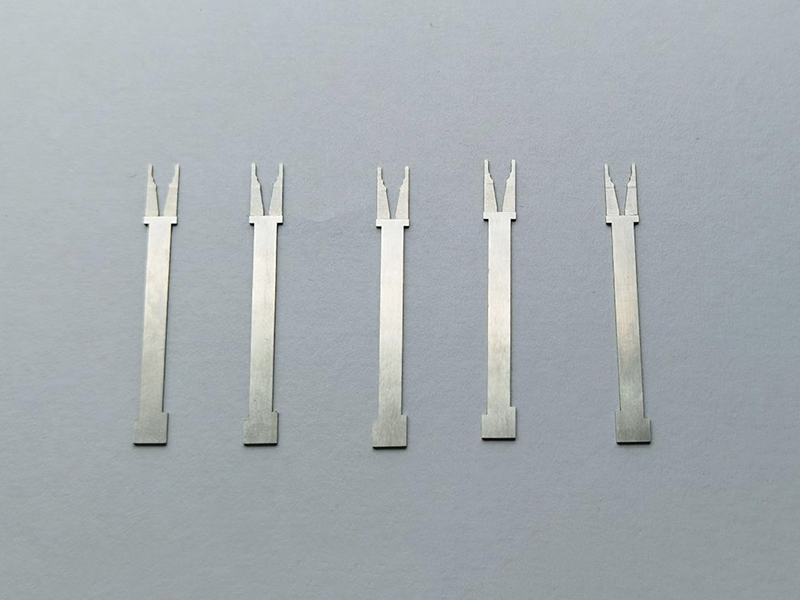

【Origin Pic】	Mould parts for HS High Speed ConnectorGENZ Download drawings (PDF format) Download drawings (DWG format) Materials: VIKWG Size: 21.600 X 0.601 X 36.720MM Features: Tooth thickness is 0.28mm, thin and large opening, and the maximum tooth center distance is 3.571mm Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	VIKWG
Size	21.600 X 0.601 X 36.720MM
Features	Tooth thickness 0.28mm, thin and large opening, the maximum tooth center distance is 3.571mm
Challenge	The teeth are thin and the opening is large, the opening is V-shaped, and the size is difficult to control

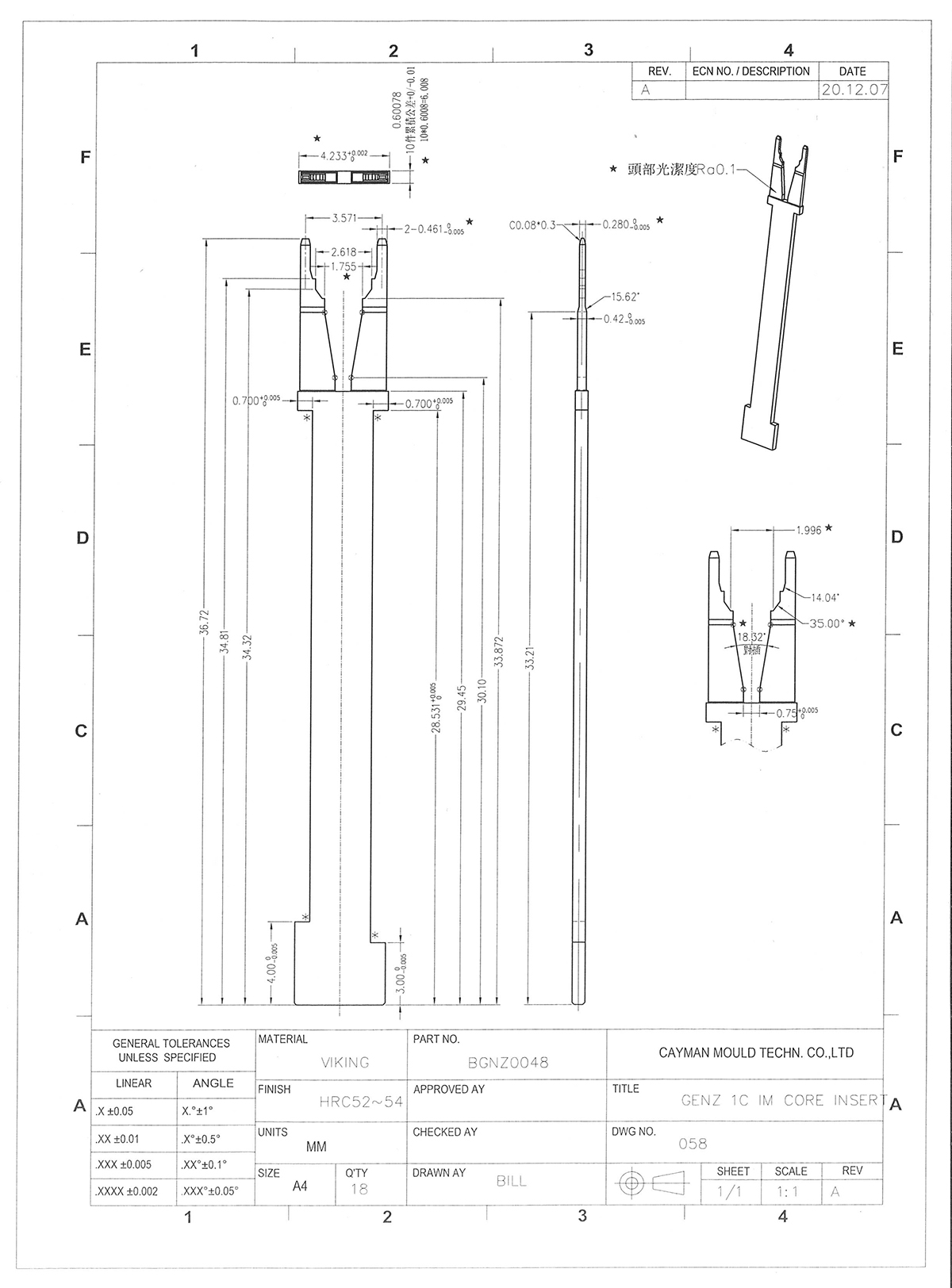

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. The main body is grooved, the process table is left, and finally the grinder is cut;
3. Select processing equipment with tight spindle deflection and qualified precision parameters.
4. Select the particle size corresponding to the TEIKEN grinding wheel.
5. Select technicians with rich experience in processing technology
