Your location Home -> Mould parts -> GENZ high-speed connector (HS CONNECTORS) molding -> Mould parts For GENZ HS connector mould

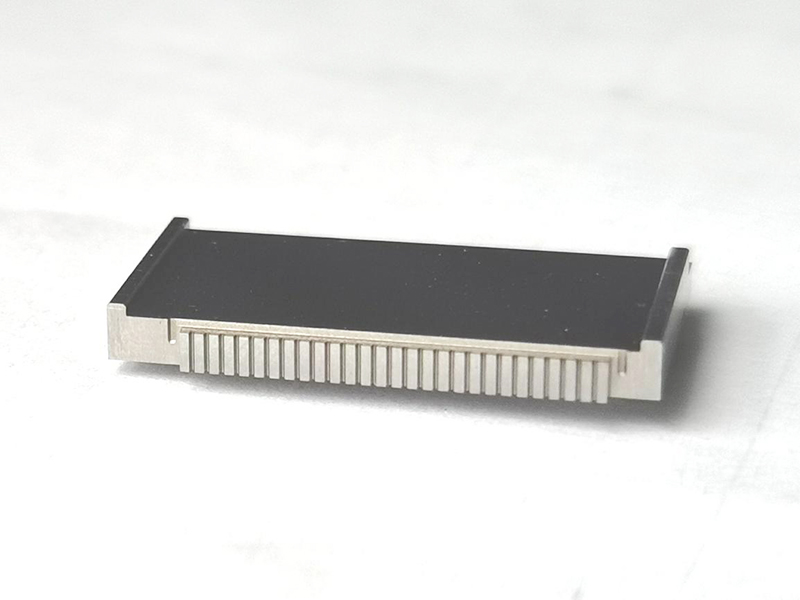

【Origin Pic】	Mould parts For GENZ HS connector mould Download drawings (PDF format) Download drawings (DWG format) Materials: VIKWG Size: 21.600 X 2.40 X 12.67 Features: 27 V-shaped grooves, head groove width 0.240mm, groove bottom R0.05 Wearable High stability High temperature strength

[View original photo] [BACK]

[Next page]

Product parameters

Materials	VIKWG
Size	21.600 X 2.40 X 12.67
Features	27 V-shaped grooves, head groove width 0.240mm, groove bottom R0.05
Challenge	There are many grooves, and the center distance is difficult to control.

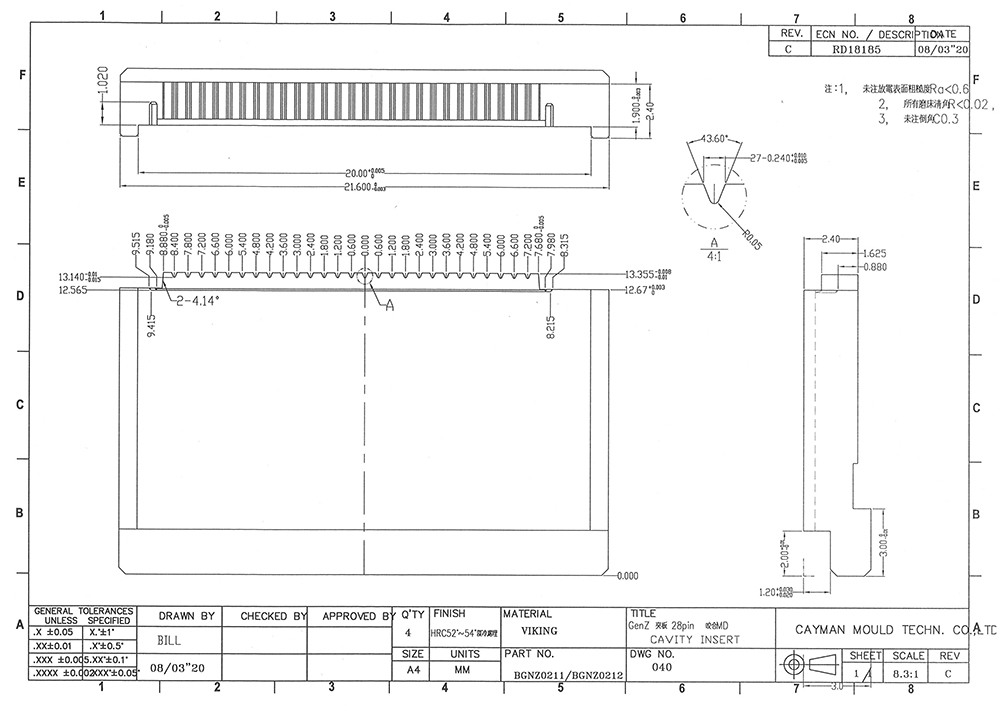

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
4. Select technicians with rich experience in processing technology

Cayman Mould technologyCMT High-precision mold parts supplier
