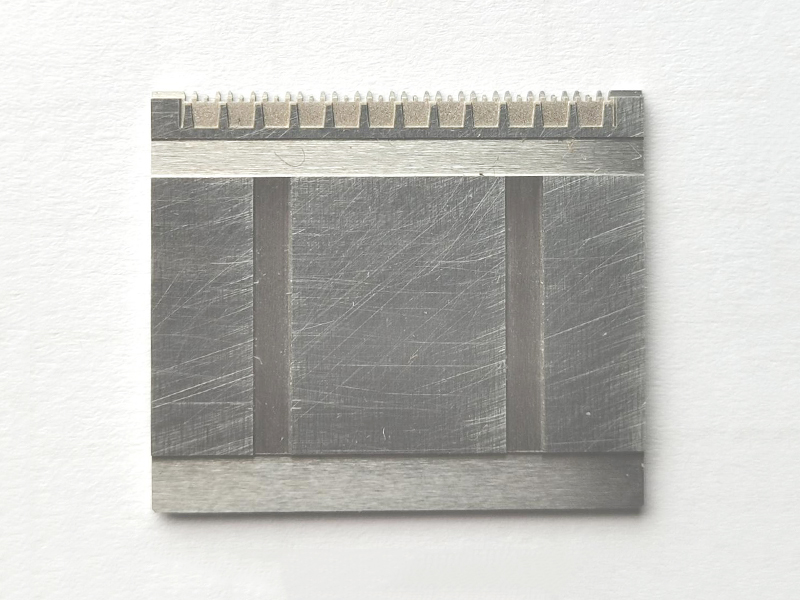

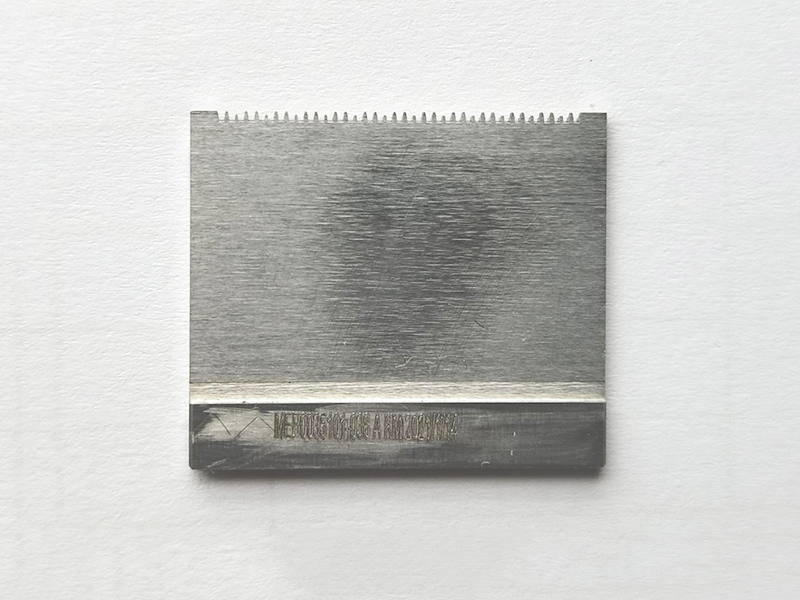

Mould parts For GENZ HS connector mould

Download drawings (PDF format) Download drawings (DWG format)

Materials: DC 53

Size: 2.220 X 25.400 X 21.506MM

Features: The head of the tooth is 0.067mm, the lower part of the tooth is 0.160; there are 25 cutting grooves on both sides of 0.35, the depth is 0.560, the grooves are many and small, and the mirror discharges

Wearable
High stability
High temperature strength

[View original photo] [BACK]

[Previous page]

Product parameters

Materials	DC 53
Size	2.220 X 25.400 X 21.506MM
Features	Tooth thickness 0.28mm, thin and large opening, the maximum tooth center distance is 3.571mm
Challenge	There are many deep grooves on both sides of the groove, which are easy to deform, and there are many processes, and mirror discharge is required.

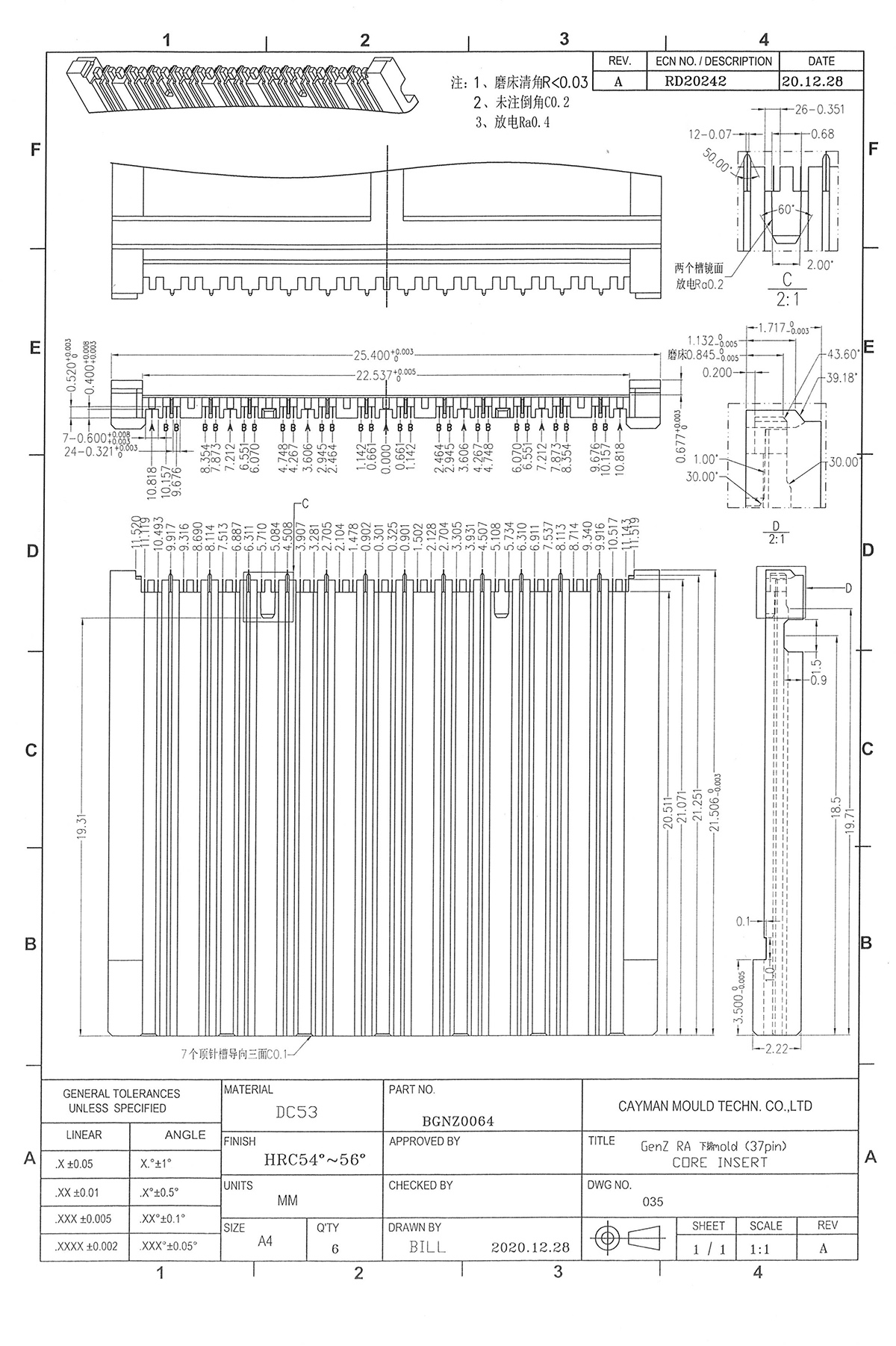

Drawings display

Solution

1. The material is DC 53, which has higher hardness and toughness than SKD11, better cutting and grinding properties, and increases the service life of the mold.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
4. Select technicians with rich experience in processing technology
