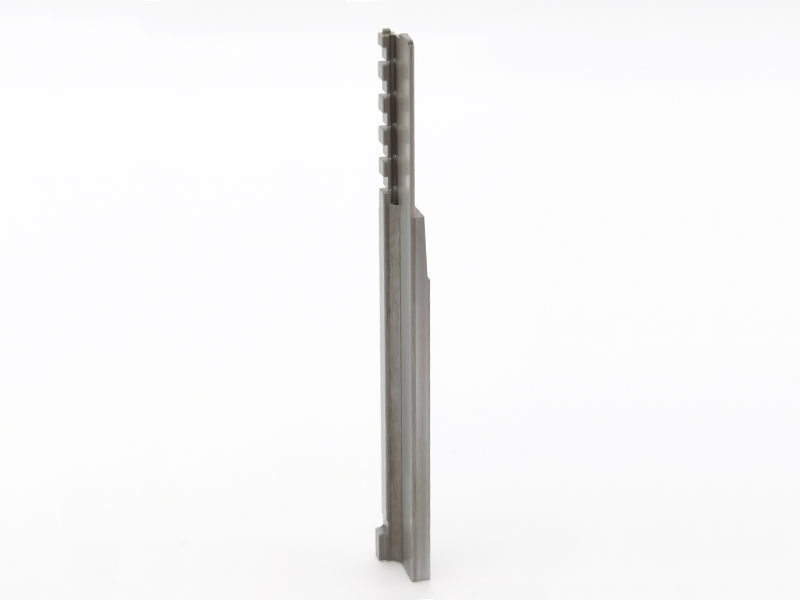

【Origin Pic】	Mould parts For 5Ways connectors Download drawings (PDF format) Download drawings (DWG format) Material: SKD61 Size: 71.6 X 4.160 X 8.622MM Features: The workpiece is thin and long, complicated to form, more R, more compound slope, large discharge surface, easy to deform Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page]

Product parameters

Materials	SKD61
Size	71.6 X 4.160 X 8.622MM
Features	This workpiece is thin and long, complicated to form, more R, more compound slope, large discharge surface, and easy to deform
Challenge	There are many inclinations, grinding and electrical discharge machining are difficult, the workpiece is thin and long, and easily deformed

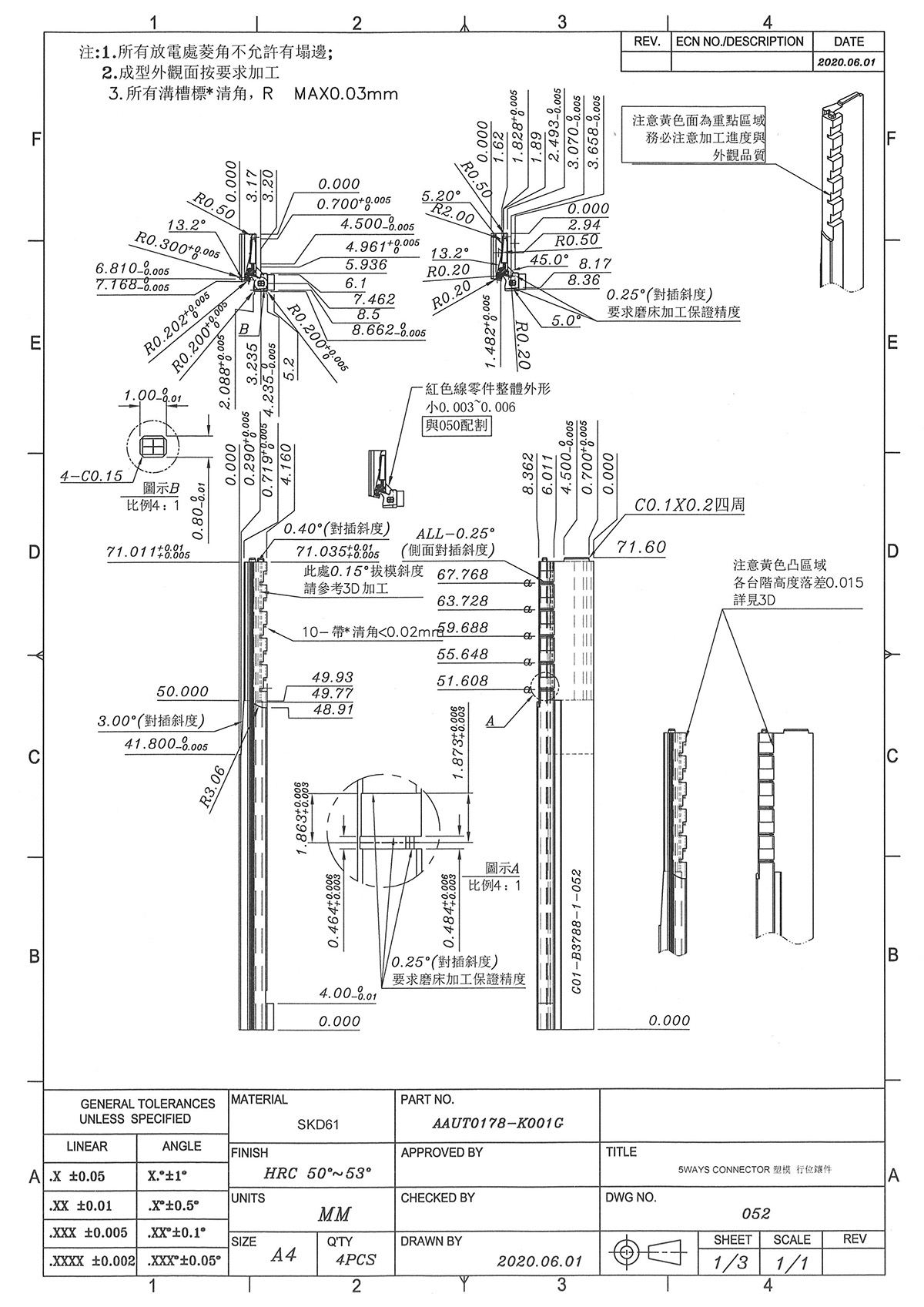

Drawings display

Solution

1. The material is SKD61, which has good high temperature strength and toughness, good wear resistance, easy cutting, small heat treatment deformation, and longer service life.
2. Select the roughing process, first high-speed CNC and electric discharge roughing, then wire cutting, then grinding and roughing, then electric discharge, then grinding and finishing, and finally electric discharge finishing.
3. Select technicians with rich experience in processing technology
