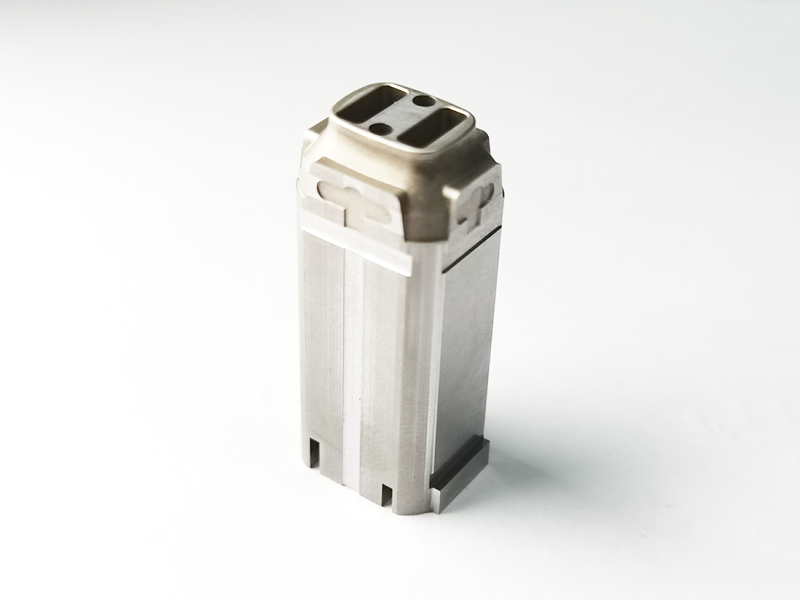

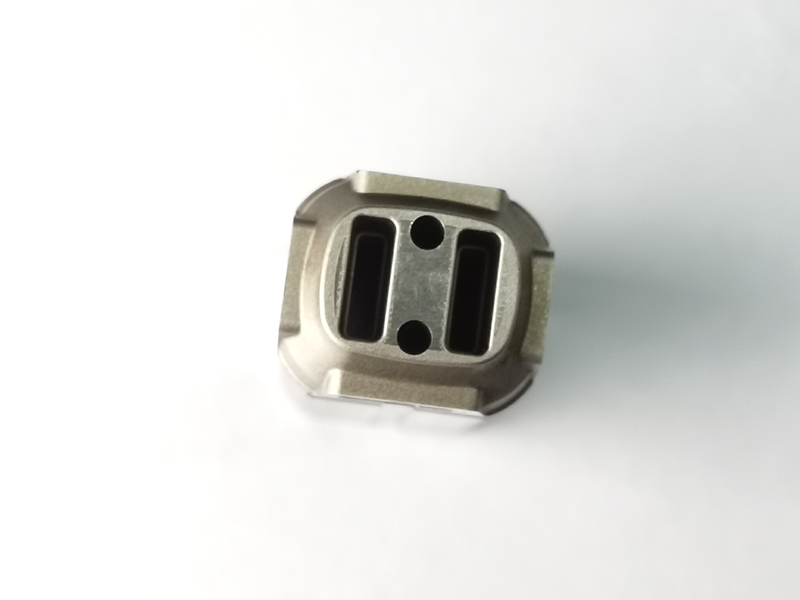

【Origin Pic】	Mould parts For Automotive connectors Download drawings (PDF format) Download drawings (DWG format) Materials: SKD 61 Size: 15.29 X 13.060 X36.910mm Features: Large size, 15.29 X 13.060 X36.910mm, middle square hole 6.130X1.620mm, complex head surface structure and shape Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	SKD 61
Size	15.29 X 13.060 X36.910mm
Features	Large size, 15.29 X 13.060 X36.910mm, middle square hole 6.130X1.620mm, complex head surface structure and shape
Challenge	The middle cutting hole processing station is deep, the peripheral CNC forming and EDM stations are large, easy to deform and difficult to control

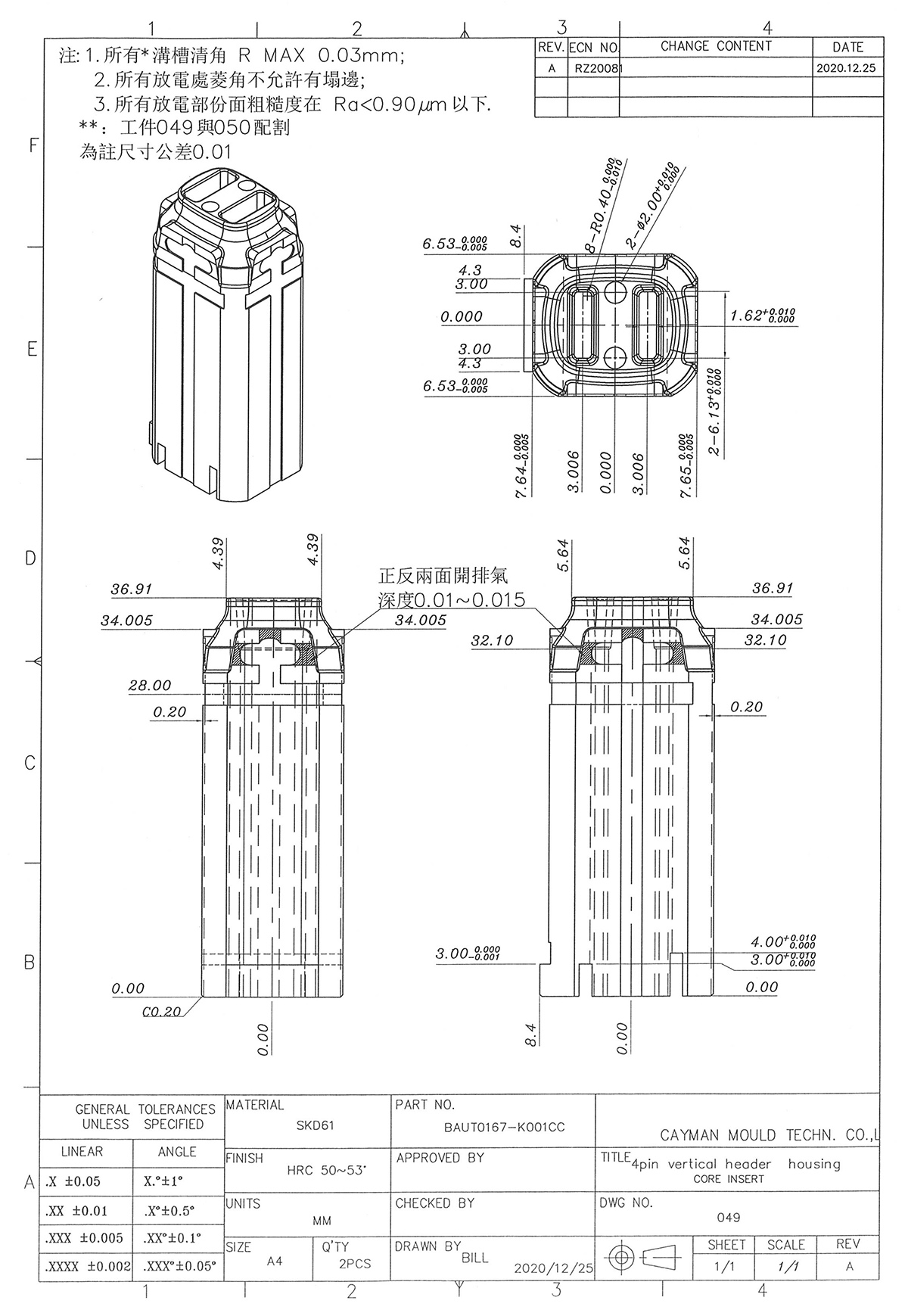

Drawings display

Solution

1. Seiko process adjustment: grinding machine roughing hexagonal shape; central square hole wire cutting rough cutting; CNC, electric discharge roughing.
2. Finishing: The grinding machine repairs deformation and finishing, and then CNC, electric discharge, and wire cutting finishing in sequence.
