Your location Home -> Mould parts -> Power connectors mould -> Mould parts For Power connectors

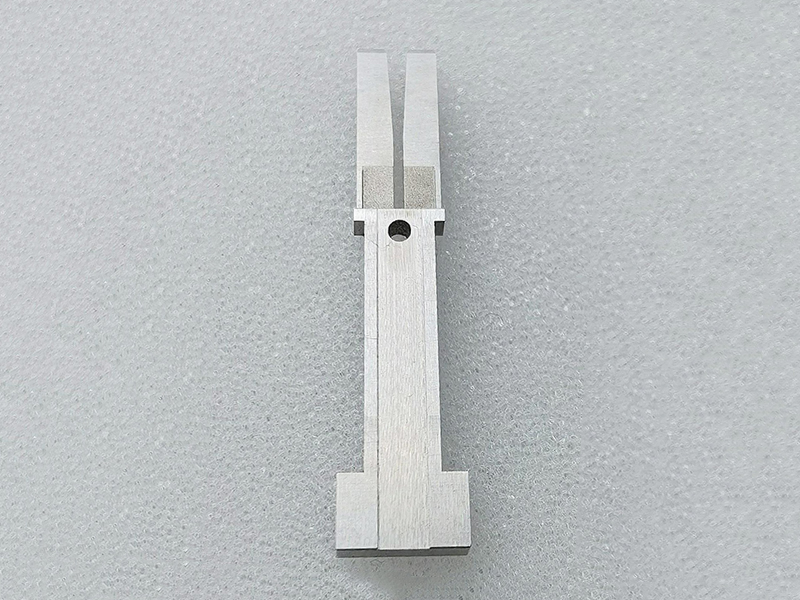

【Origin Pic】	Mould parts For Power connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKING Size: 8.80 X 2.54 X 39.80MM Features: The groove width is 0.81, the groove depth is 14.884, and the tooth thickness is 2.543, which is easy to deform. It is mainly used for grinding Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page]

Product parameters

Materials	VIKING
Size	8.80 X 2.54 X 39.80MM
Features	Slot width 0.81, groove depth 14.884, tooth thickness 2.543 easy to deform, mainly in grinding process
Challenge	The groove depth is 14.884mm, deep and thin, easy to deform, and difficult to control the size

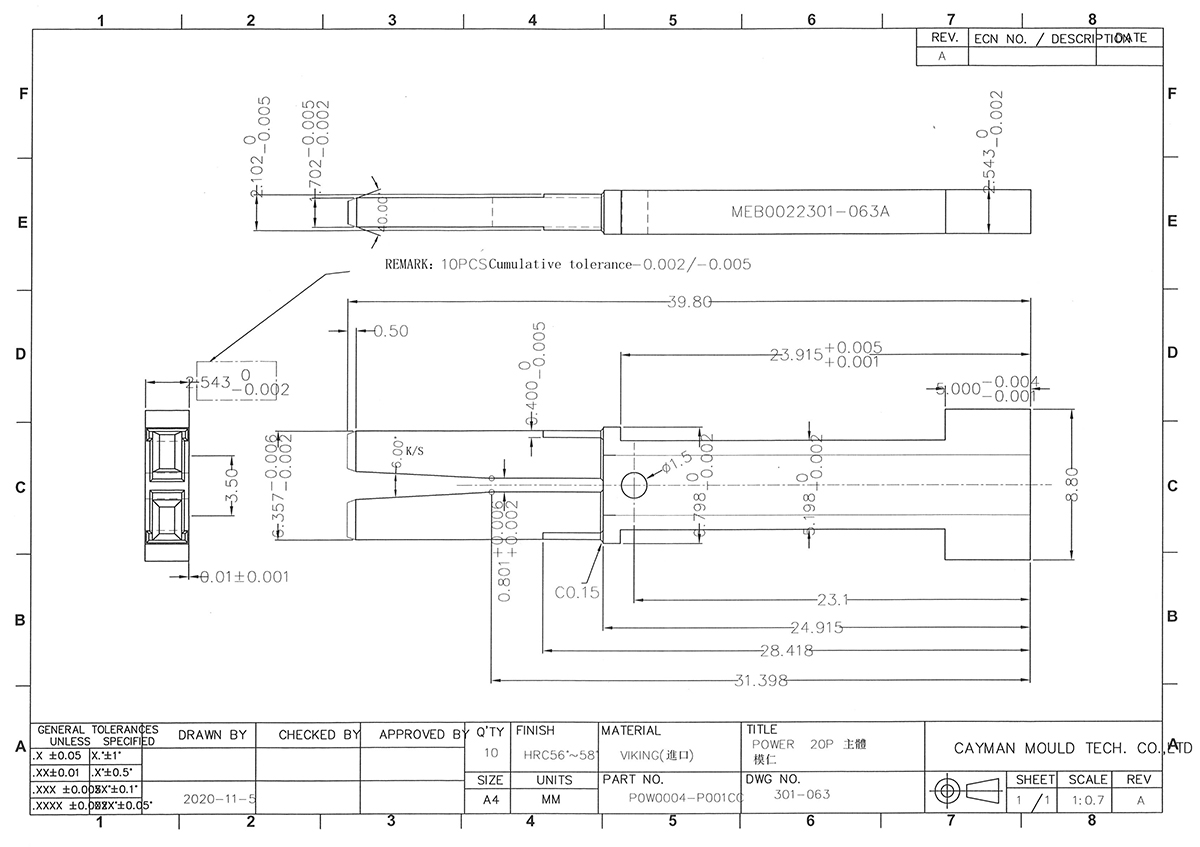

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select processing equipment with good stability, tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the TEIKEN grinding wheel.
5. Select technicians with rich experience in processing technology
