Your location Home -> Mould parts -> Power connectors mould -> Mould parts For B820 Header of Mobile phone Recharger

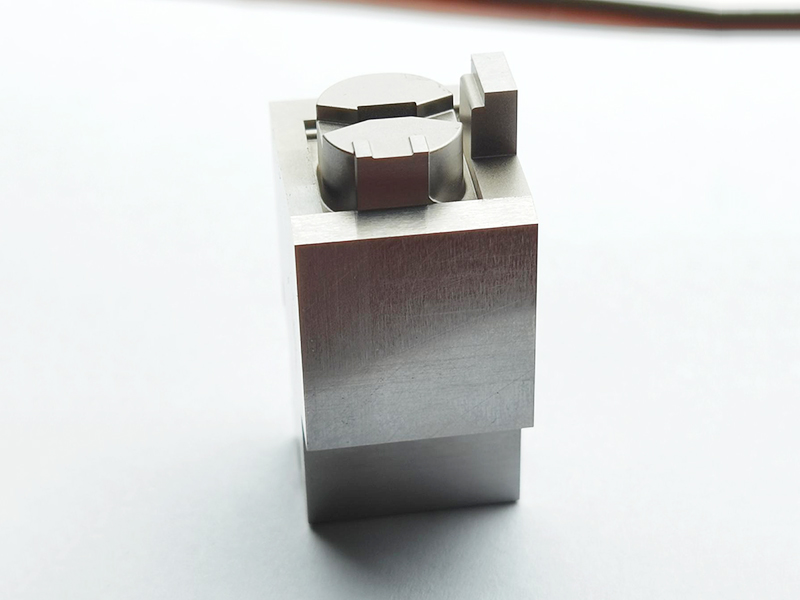

【Origin Pic】	Mould parts For B820 Header of Mobile phone Recharger Download drawings (PDF format) Download drawings (DWG format) Materials: UNIMAX Dimensions: 21.219 X 18.000 X 43.466mm Features:There are many and complex discharge stations, and many insertion positions Wearable High stability High temperature strength

[View original photo] [BACK]

[Previous page] [Next page]

Product parameters

Materials	UNIMAX
Size	21.219 X 18.000 X 43.466mm
Features	There are many and complex discharge stations, and many pairs of plugs
Challenge	There are many discharge stations, many insertion positions, high discharge accuracy requirements, and clear corners

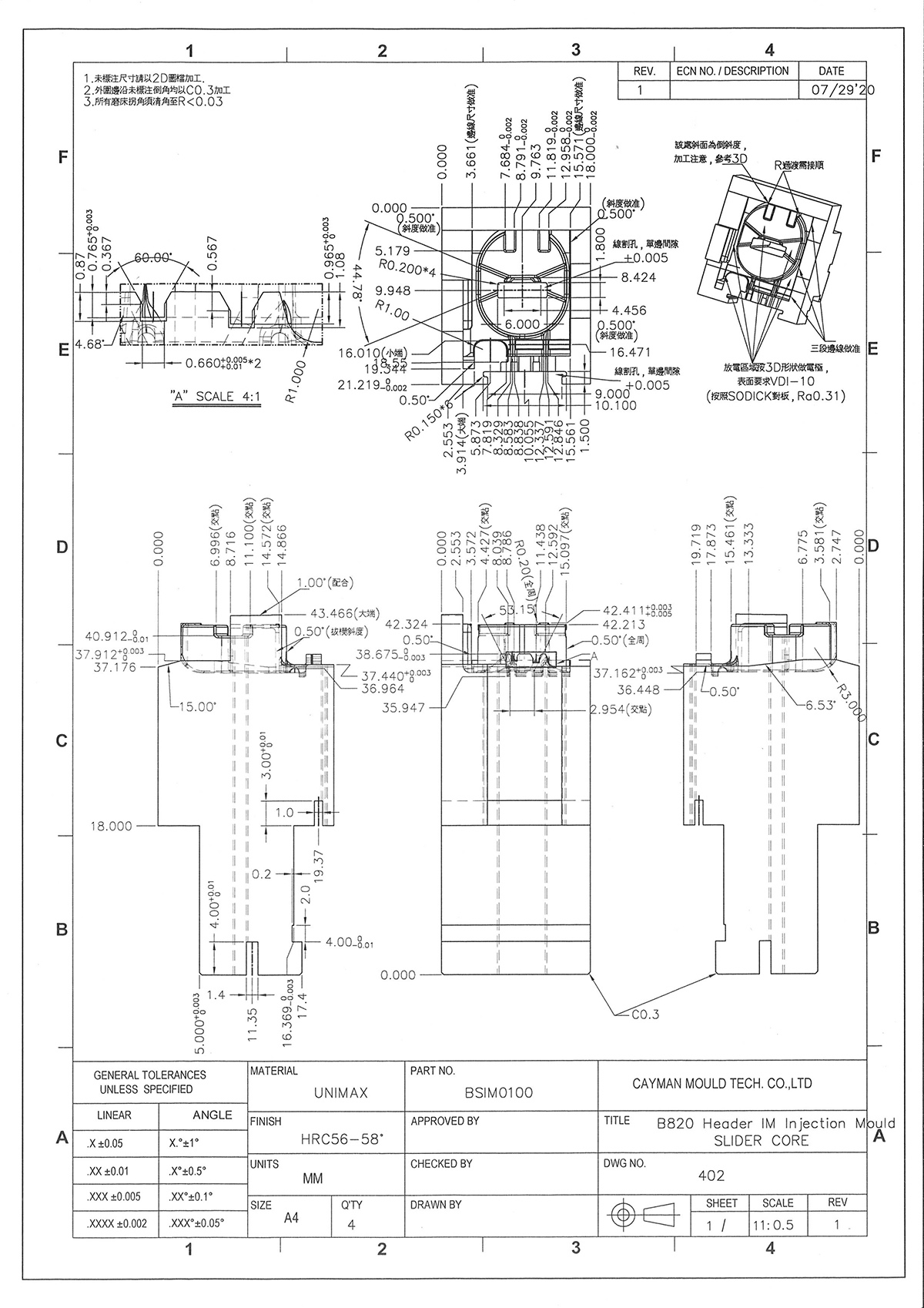

Drawings display

Solution

1. The material is UNIMAX, which has excellent toughness and plasticity in all directions, wear resistance, excellent polishability, good dimensional stability during heat treatment and use, and good high temperature strength.
2. Select high-speed CNC copper machining electrodes to ensure electrode accuracy and smoothness.
3. Select SODICK mirror discharge machine to ensure accuracy and surface texture and clear corners.
4. Select technicians with rich experience in processing technology.
