Your location Home -> Mould parts -> SIM CARD MOULD -> ould parts For SIM CARD

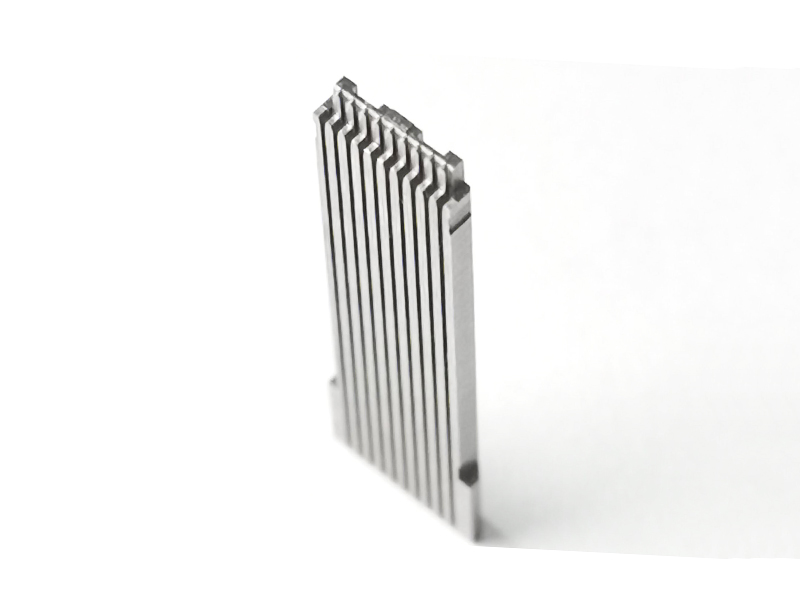

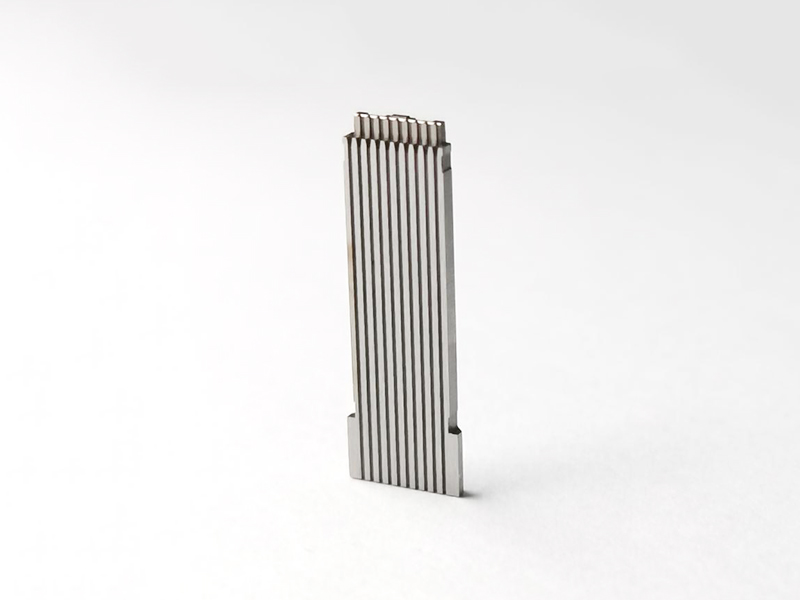

【Origin Pic】	ould parts For SIM CARD Download drawings (PDF format) Download drawings (DWG format) Materials: SKD 61 Size: 7.3 X 1.03 X 22.475mm Features: 10 0.240mm grooves, 0.301mm deep, 0.601mm where the head is thin, the workpiece is small and thin Wearable High stability High temperature strength

[View original photo] [BACK]

Product parameters

Materials	SKD 61
Size	7.3 X 1.03 X 22.475mm
Features	10 0.240mm grooves, 0.301mm deep, 0.601mm where the head is thin, the workpiece is small and thin
Challenge	10 0.240 grooves, thin head, easy to deform

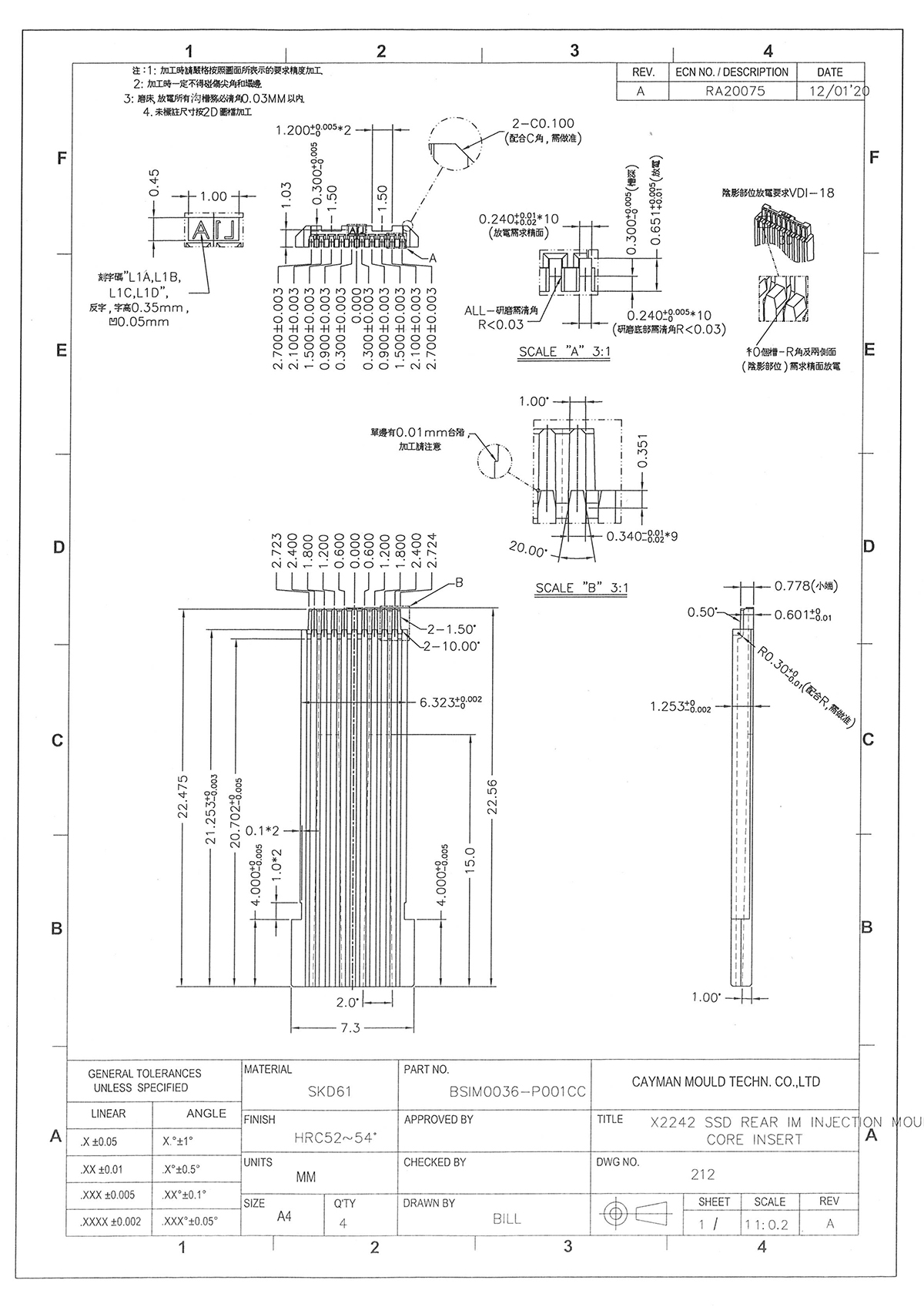

Drawings display

Solution

1. The material is SKD 61, which has good high temperature strength and toughness, good wear resistance and easy cutting; hot die steel with good heat resistance balance, which can make the die life longer, the performance is more stable, and it is easy to process, heat treatment deformation Small.
2. Select processing equipment with tight spindle deflection and qualified precision parameters
3. Select technicians with rich experience in processing technology.
