Your location Home -> Mould parts -> Mobile phone mold-Handset Network -> Mould parts For Mobile phone headset

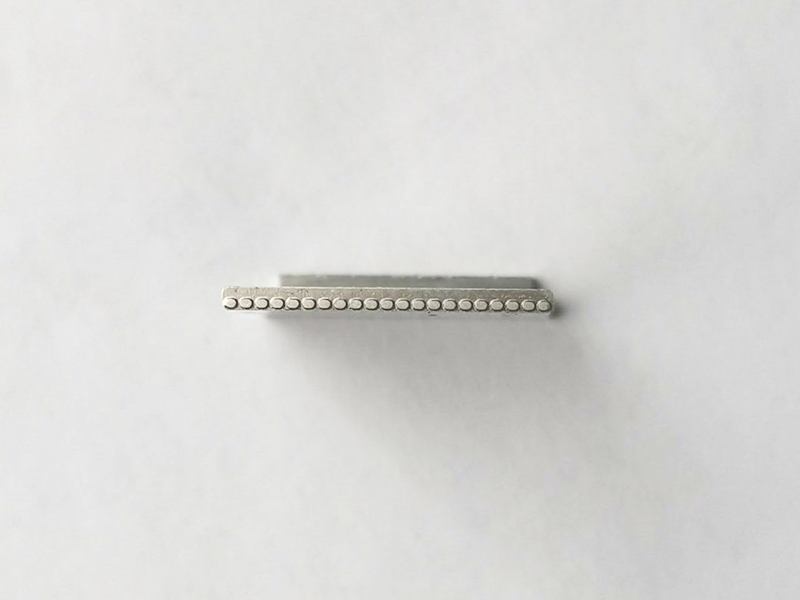

【Origin Pic】	Mould parts For Mobile phone headset Download drawings (PDF format) Download drawings (DWG format) Material: S136 Dimensions: 13.799 x 1.000 x 18.80mm Features: This is a moulded part of the handset net of the mobile phone. The head of the workpiece has many and dense columns, with small column spacing. Wearable High stability High temperature strength

[View original photo] [BACK]

Product parameters

Materials	S136
Size	13.799 x 1.000 x 18.80mm
Features	This is the moulding part of the handset net of the mobile phone. The head of the workpiece has many and dense pillars, and the spacing between the pillars is small. The discharge lines should be sub-mirror to facilitate demolding, and the requirements for the electrodes are high
Challenge	The pillars are small and dense, the spacing between the pillars is small, the pillars are many, and the discharge requirements are high

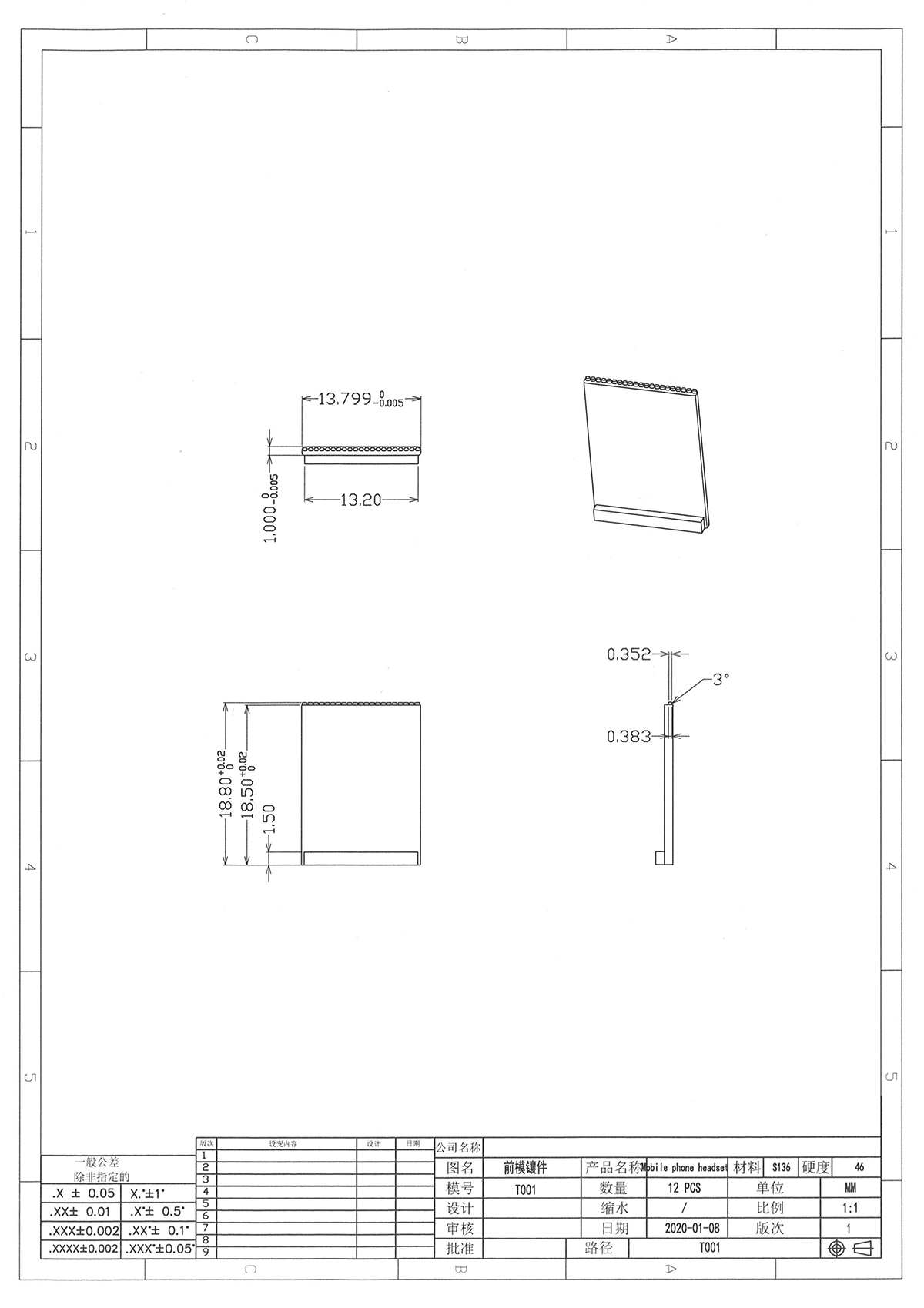

Drawings display

Solution

1. The material is S136, which has excellent wear resistance, corrosion resistance, excellent machining performance, and can be processed by mirror discharge machining.
2. Select the processing equipment for FANUC high-speed CNC machining of discharge electrodes (copper male).
3. Choose Jackson stainless steel grinding wheel for grinding.
4. Select technicians with rich experience in processing technology.
