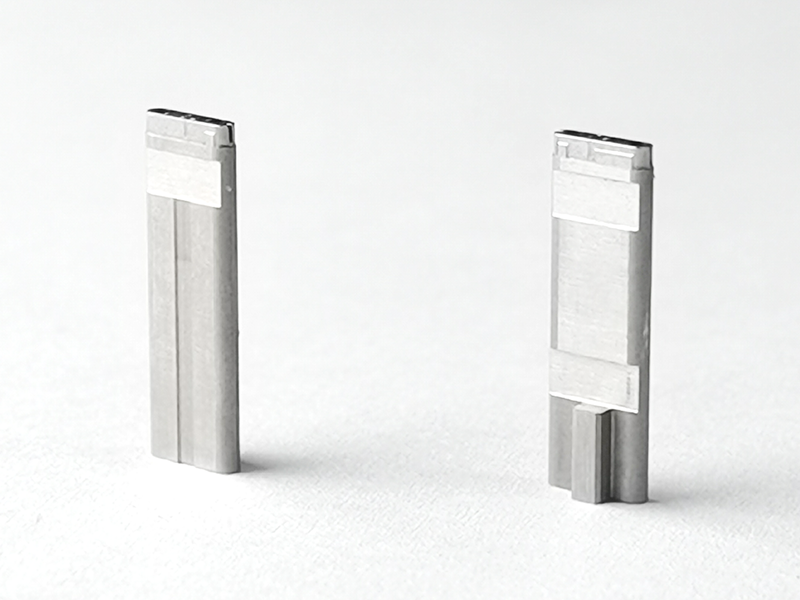

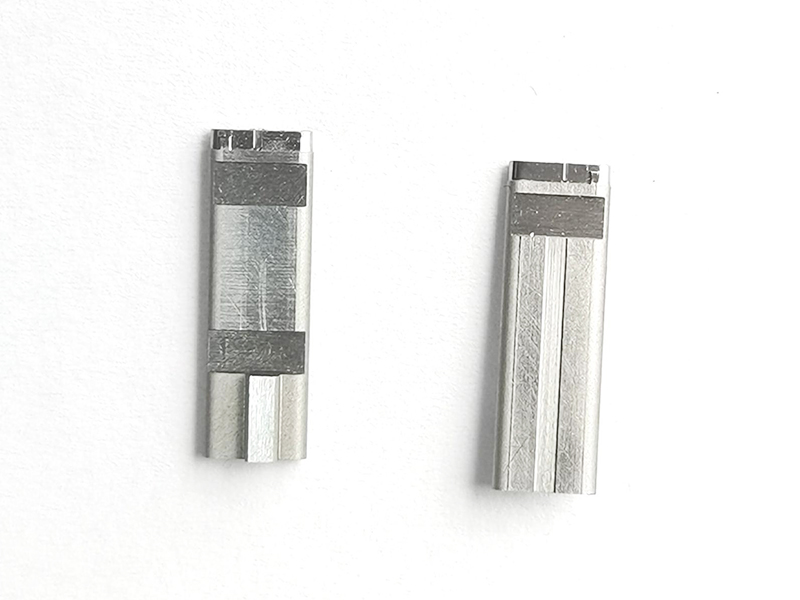

【Origin Pic】	Mould parts For Automotive connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKING Size: 4.899 X 1.213 X15.35mm Features: This workpiece is small in size, with a circular arc, cutting through holes of 0.8, and requires a discharge pattern of RA0.13 Wearable High stability High temperature strength

[View original photo] [BACK]

[Next page]

Product parameters

Materials	VIKING
Size	4.899 X 1.213 X15.35mm
Features	This workpiece is small in size, with a circular arc, cutting through holes of 0.8, and requires a discharge pattern of RA0.13
Challenge	The discharge pattern is RA0.13, the head is covered with R, the middle groove is important, and the size should be well controlled

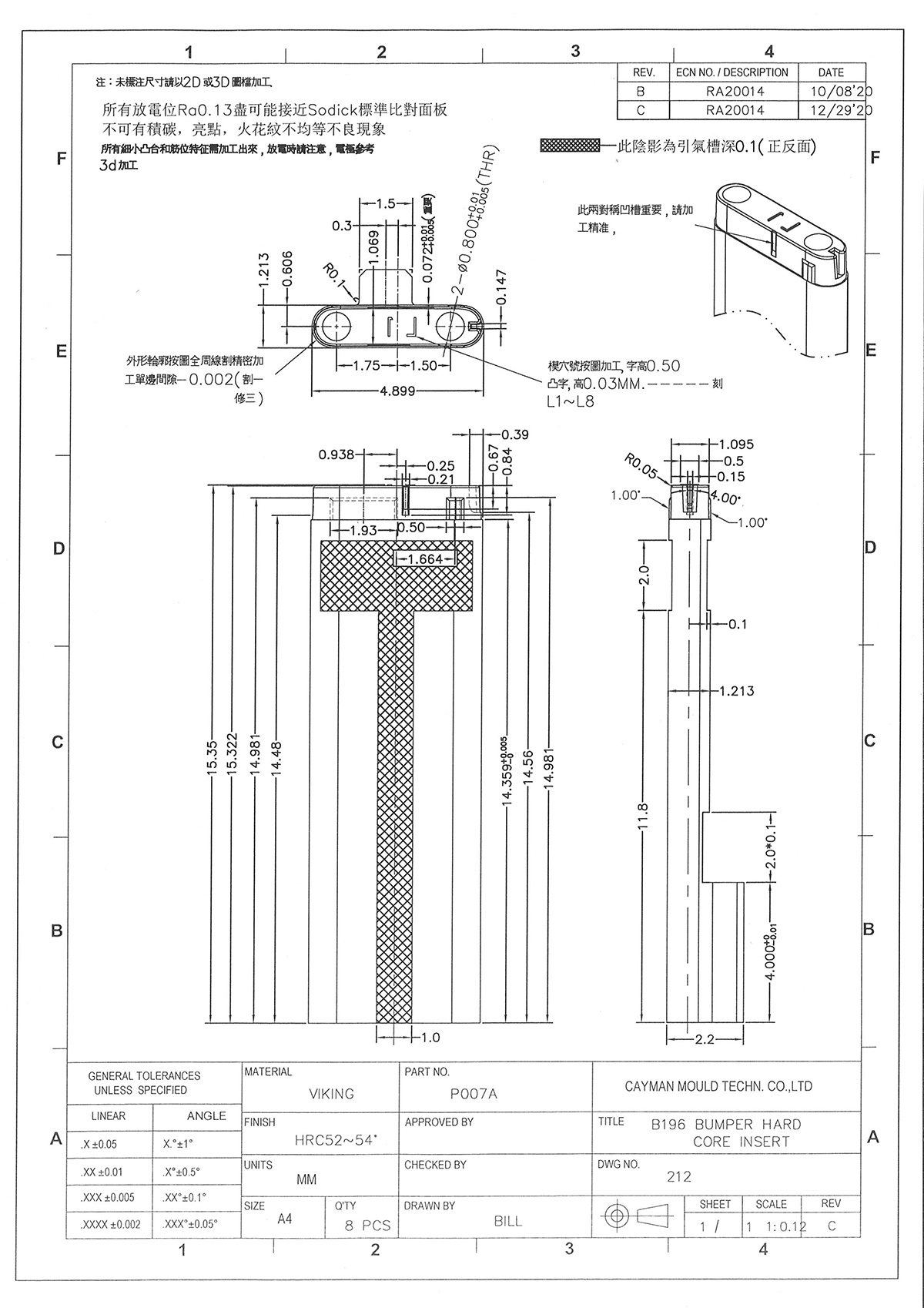

Drawings display

Solution

1. Seiko process adjustment: use high-precision seibu slow-moving wire to cut the shape, grind the size in place, and leave the craft table; to prevent the head from being cut by the wire, cut the hole first;
2. Finishing: CNC copper public guarantee accuracy, discharge roughing, discharge mirror processing.

Cayman Mould technologyCMT High-precision mold parts supplier
