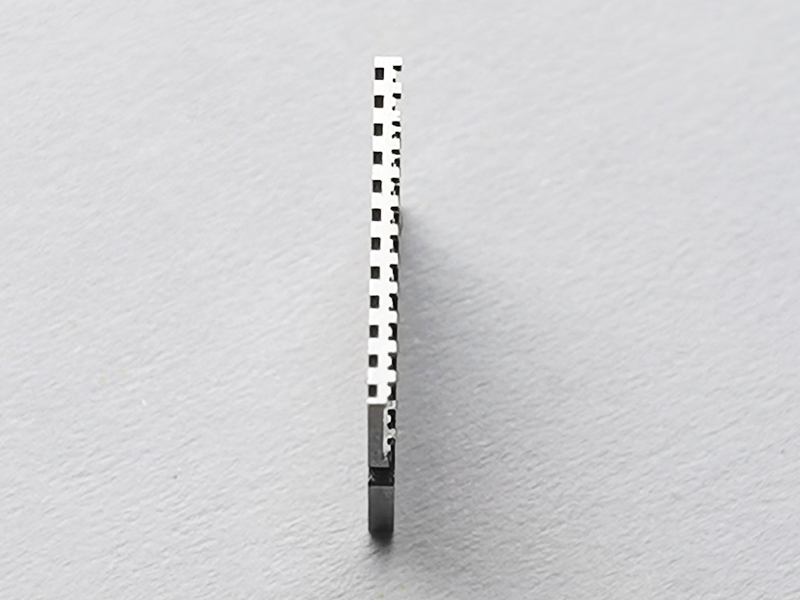

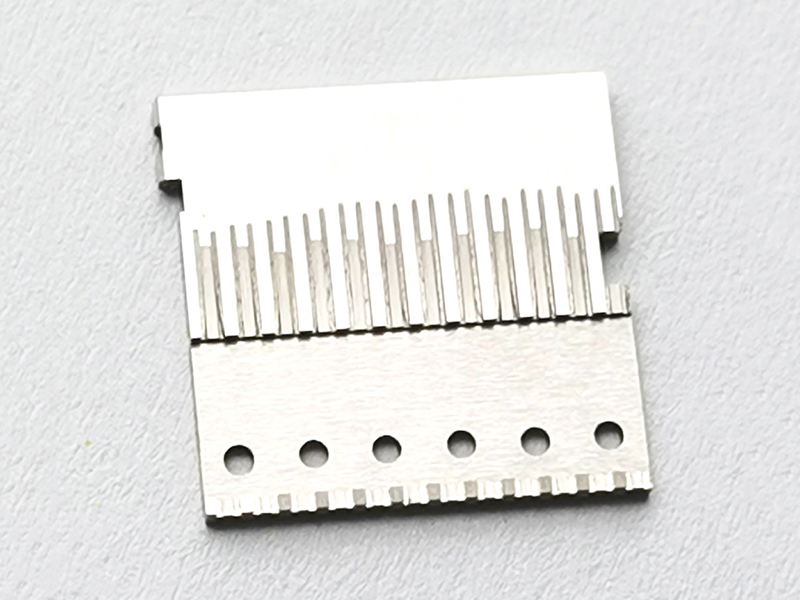

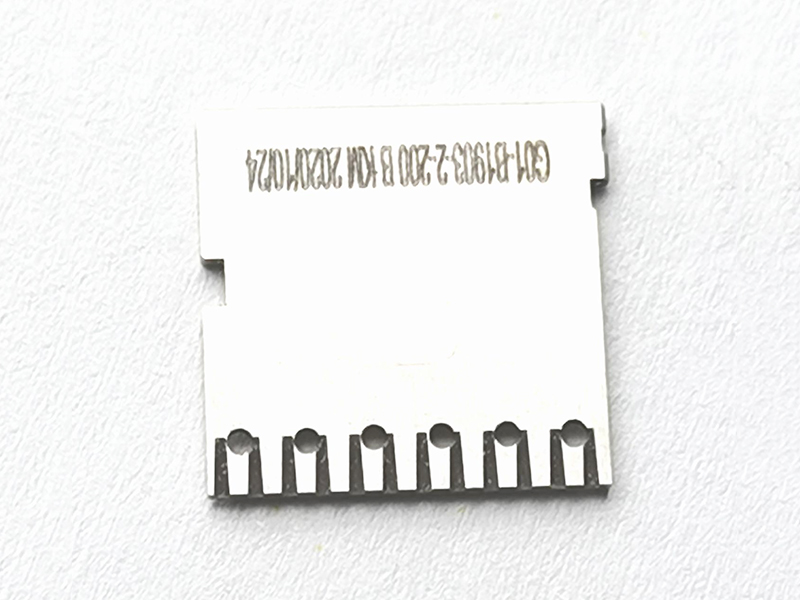

【Origin Pic】	Mould parts For Socket connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKWG Size: 12.055 X 0.869 X 12.000mm Features: grinding angle R<0.02mm, the deformation of the parts is within 0.005mm, and there should be no burrs in the small groove Wearable High stability High temperature strength

[View original photo] [BACK]

Product parameters

Materials	VIKWG
Size	12.055 X 0.869 X 12.000mm
Features	Grinding angle R<0.02mm, the deformation of the parts is within 0.005mm, and there should be no burrs in the small groove
Challenge	Thin parts, easy to deform during grinding, difficult to control the size

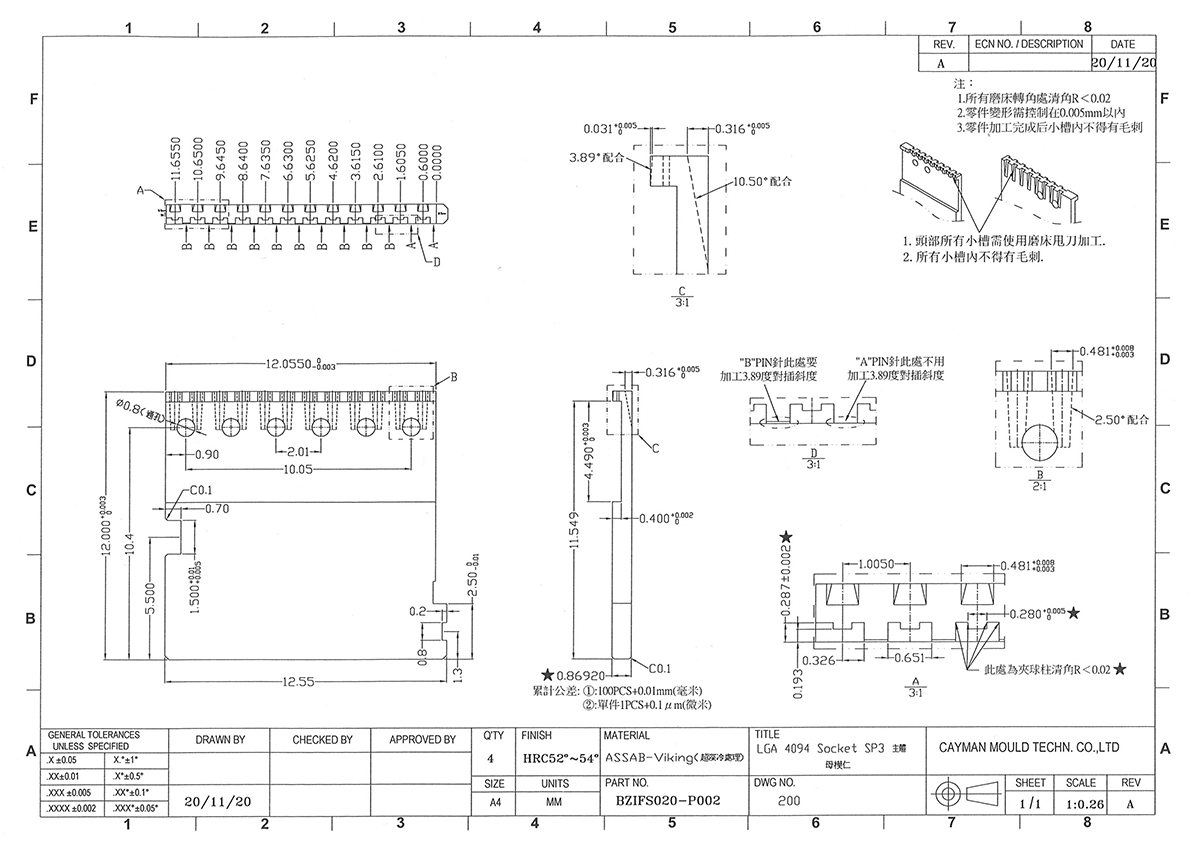

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the Tenori grinding wheel.
4. Select technicians with rich experience in processing technology
