Your location Home -> Mould parts -> Power charger mould -> Mould parts For Power Charger connectors

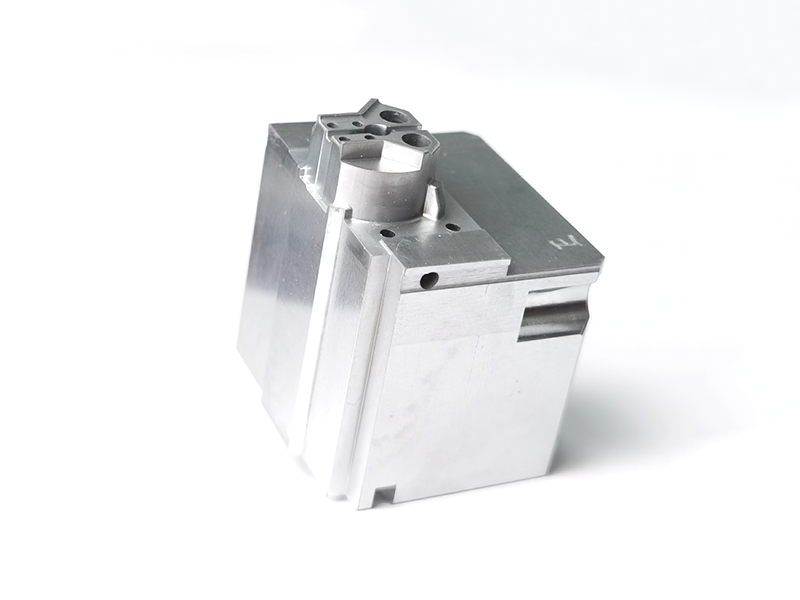

【Origin Pic】	Mould parts For Power Charger connectors Download drawings (PDF format) Download drawings (DWG format) Materials: DC 53 Size: 30.000 X 28.700 X 29.338MM Features: Mobile phone charger mold, many forming parts, larger workpiece Wearable High stability High temperature strength

[View original photo] [BACK]

Product parameters

Materials	DC 53
Size	30.000 X 28.700 X 29.338MM
Features	Mobile phone charger mold, many forming parts, large workpiece
Challenge	There are many discharge stations, there are certain requirements for the electrodes, and the requirements for the master to review the drawings are higher

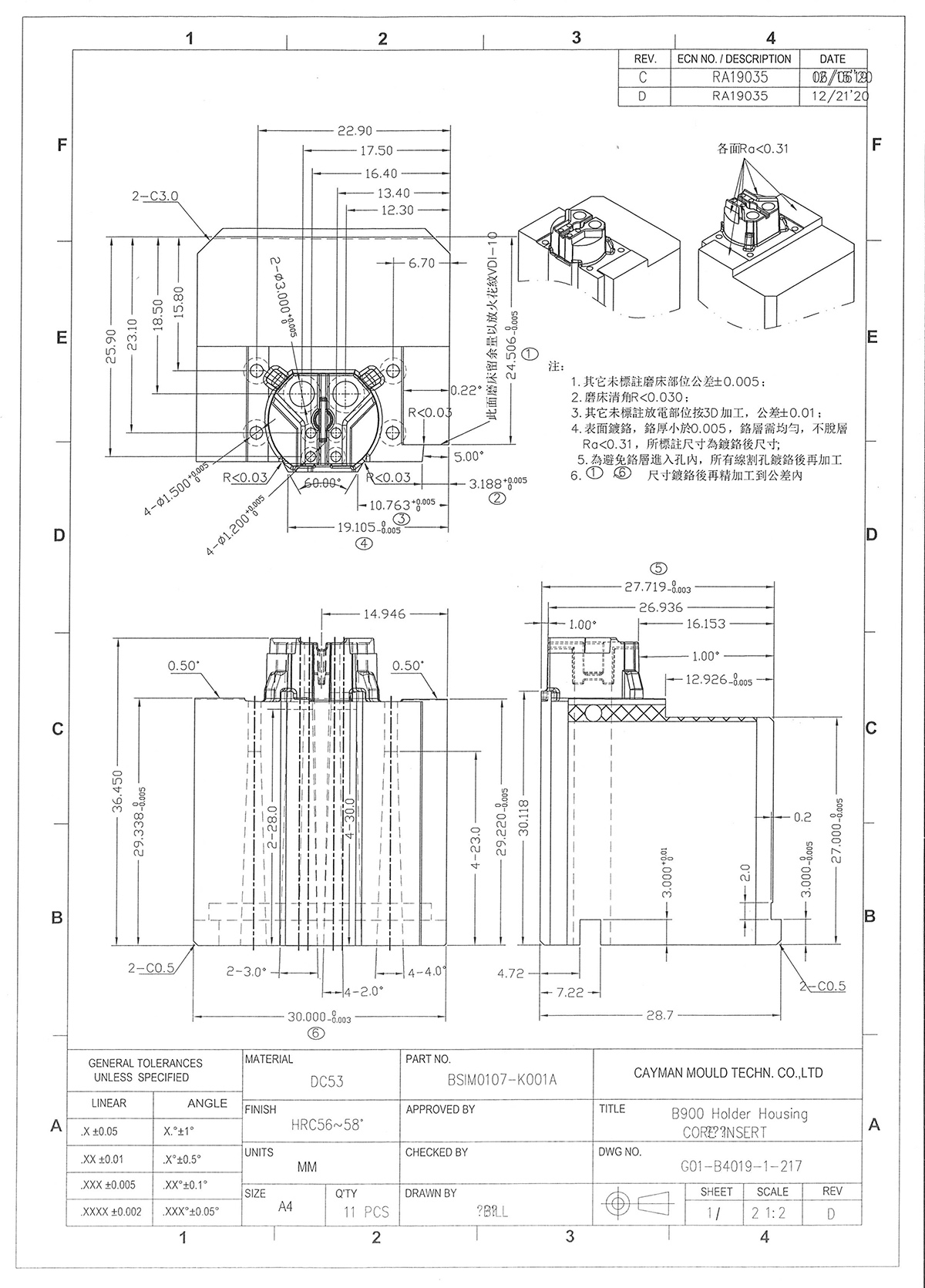

Drawings display

Solution

1. The material is DC 53, which has higher hardness and toughness than SKD11, better cutting and grinding properties, and increases the service life of the mold.
2. Choose high-speed CNC, the decomposition of copper should be reasonable, and there are many discharge departments;
3. Choose Makino electric motor with good comprehensive performance;
5. Select technicians with rich experience in processing technology
