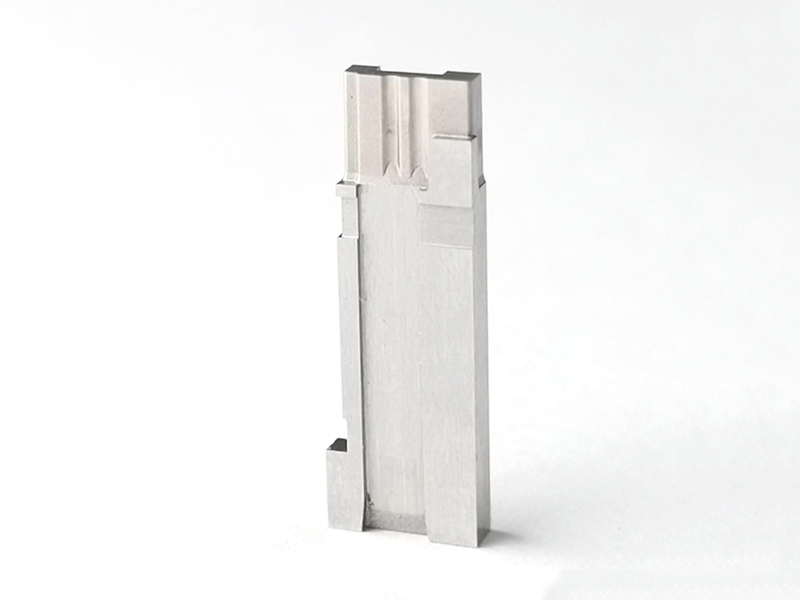

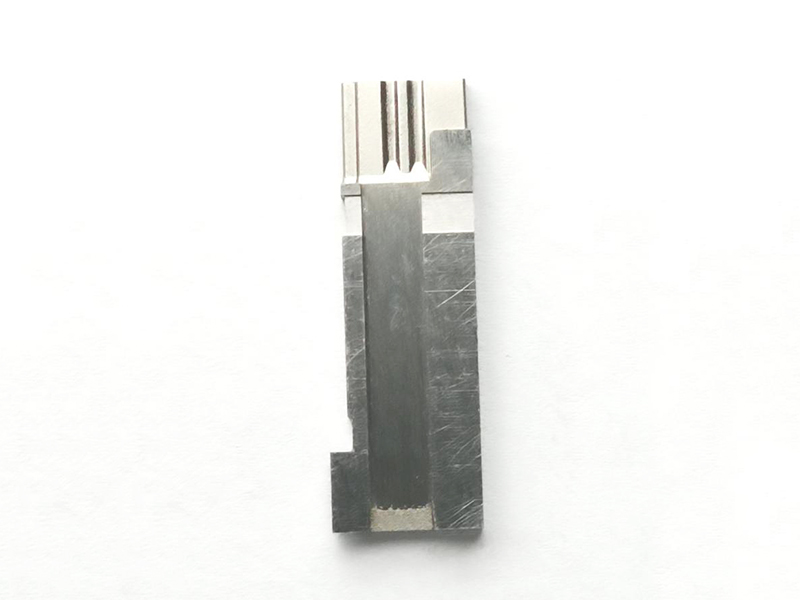

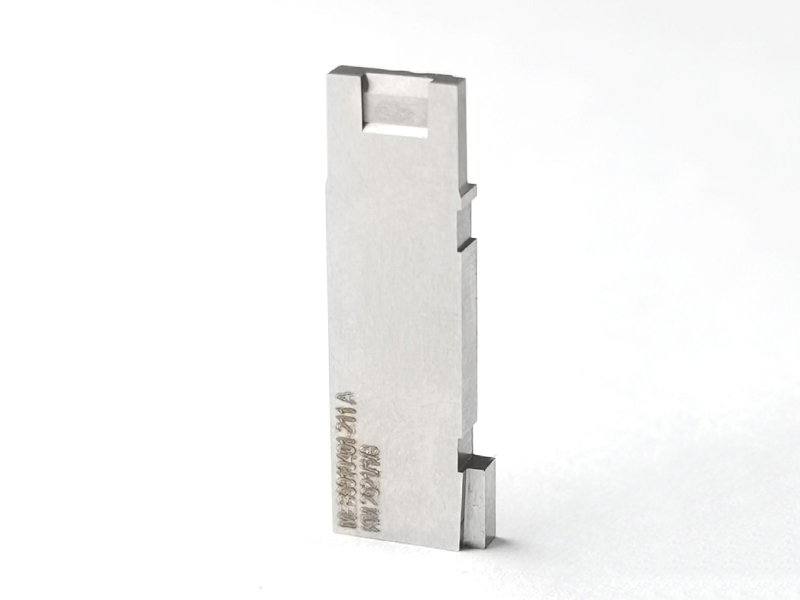

【Origin Pic】	Mould parts For HDMI connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKING Size: 7.40 X 2.231 X 22.398mm Features: This is the mold for HDMI CAP on the HDMI connector, the head requires high precision, and the ribs must be mirror-discharged Wearable High stability High temperature strength

[View original photo] [BACK]

[Next page]

Product parameters

Materials	VIKING
Size	7.40 X 2.231 X 22.398mm
Features	This is the mold of HDMI CAP on the HDMI connector, the precision of the head is high, and the ribs must be mirror-discharged
Challenge	High precision of the head requires mirror discharge

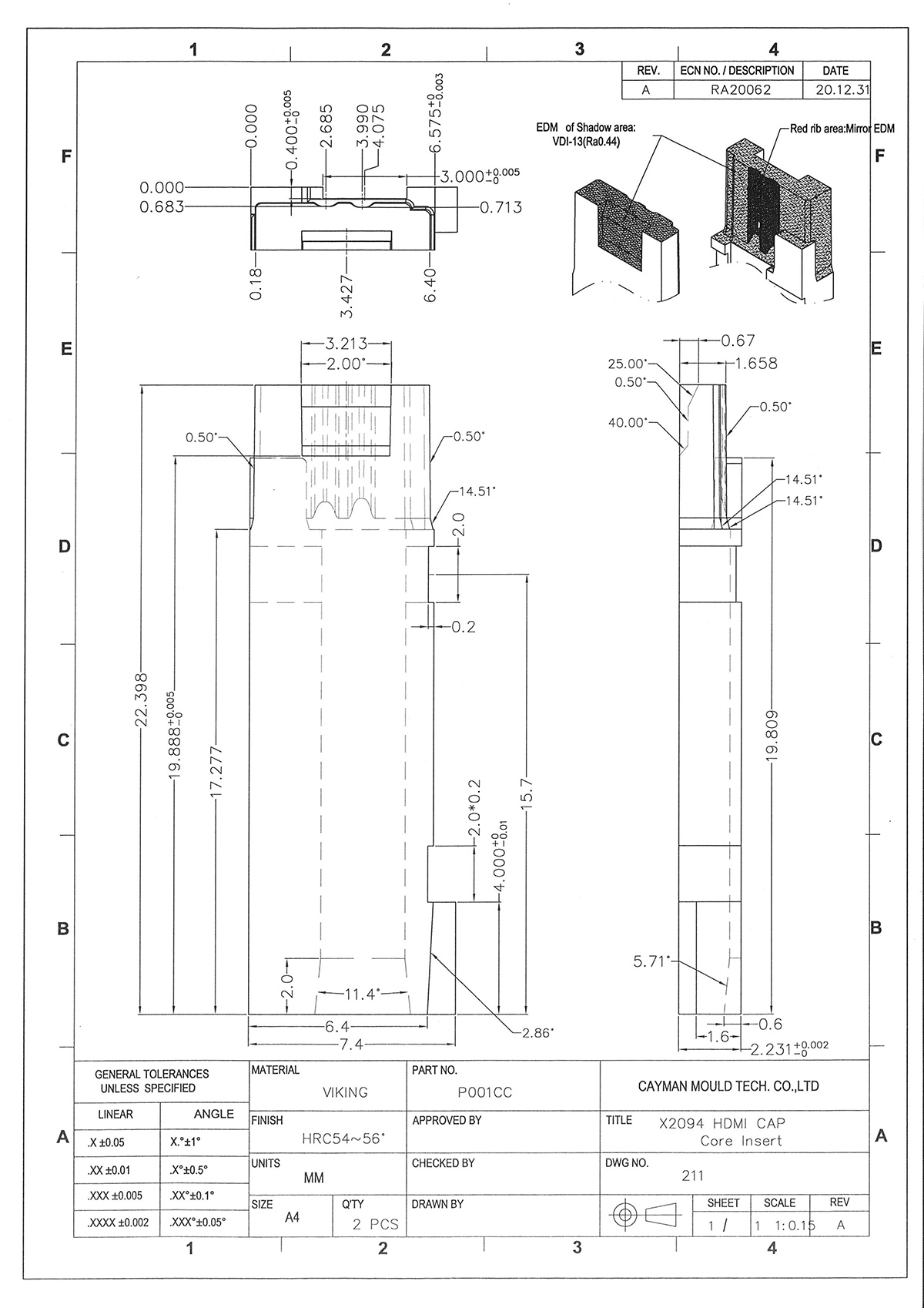

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select processing equipment with good stability and qualified precision parameters.
3. Select high-speed CNC to ensure the precision and finish of the copper male;
5. Select technicians with rich experience in processing technology
