Your location Home -> Mould parts -> Cable connectors mould -> Mould parts For Cable connectors

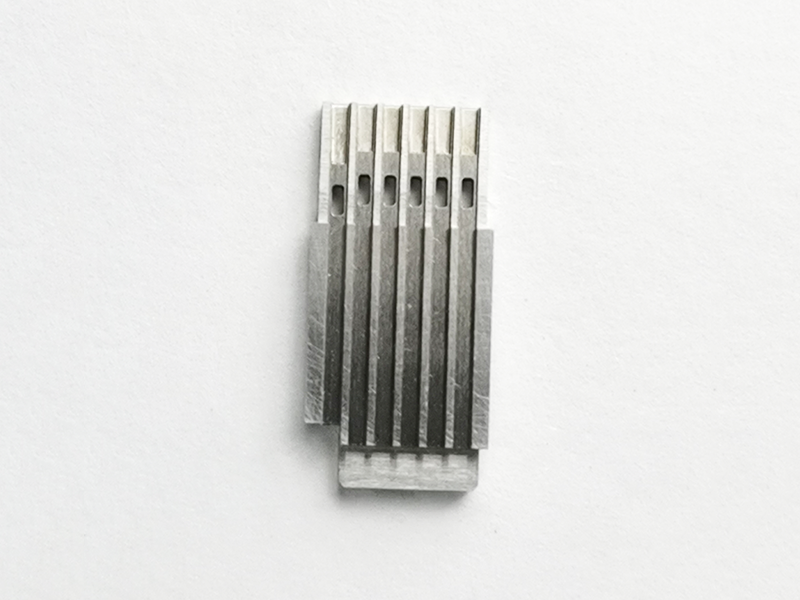

【Origin Pic】	Mould parts For Cable connectors Download drawings (PDF format) Download drawings (DWG format) Materials: VIKWG Size: 8.840 X 1.95 X 18.493mm Features: grinding angle R<0.02mm, parts deformation within 0.005mm, tooth thickness 0.34mm Wearable High stability High temperature strength

[View original photo] [BACK]

Product parameters

Materials	VIKWG
Size	8.840 X 1.95 X 18.493mm
Features	Grinding angle R<0.02mm, parts deformation within 0.005mm, tooth thickness 0.34mm
Challenge	The parts are thin, easy to be deformed by grinding and EDM, and the size is difficult to control.

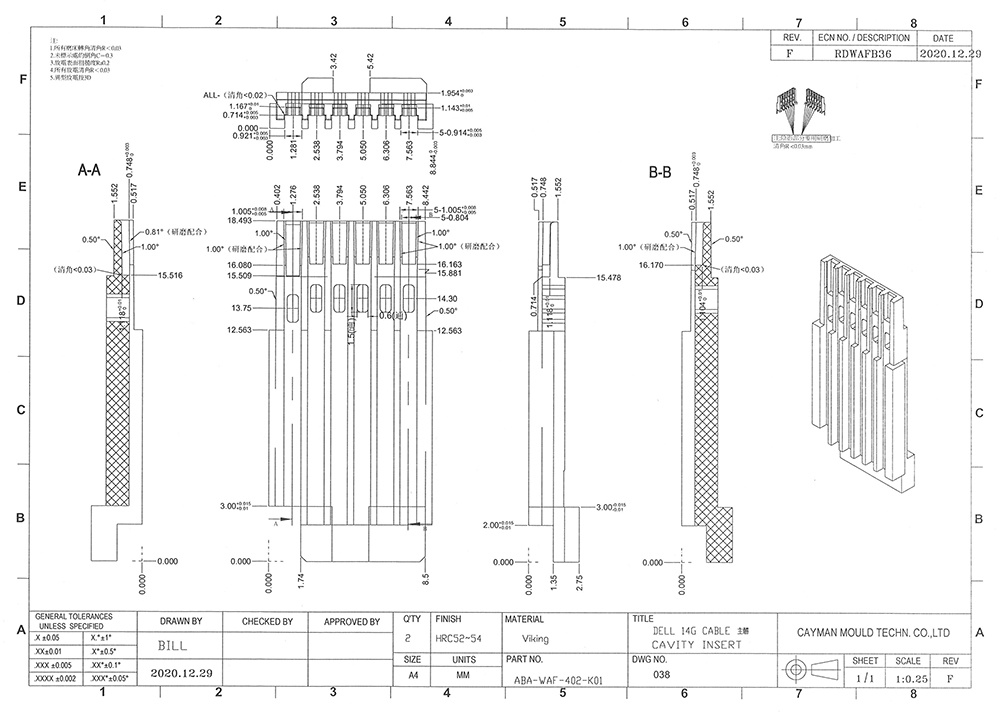

Drawings display

Solution

1. Material selection VIKWG, with heat treatment stability, small dimensional change, high wear resistance and high toughness.
2. Select the processing equipment with tight spindle deflection and qualified precision parameters.
3. Select the particle size corresponding to the Tenori grinding wheel.
4. Select technicians with rich experience in processing technology
