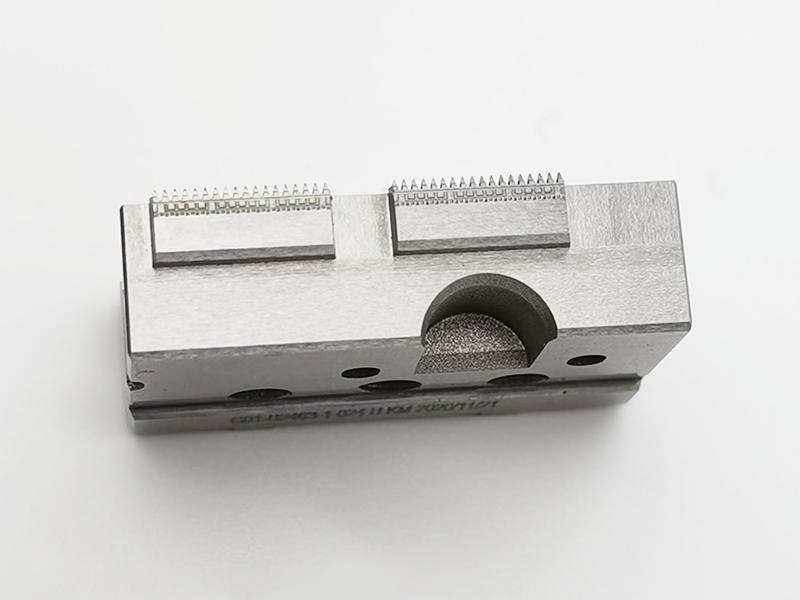

【Origin Pic】	Mould parts For BTB Connectors Download drawings (PDF format) Download drawings (DWG format) Materials: UNIMAX Size: 28.480 X 17.025 X 8.500mm Features: 34 grooves of 0.42mm5, bottom width 0.195mm, tooth height 7.850mm, precision 0 to 0.003mm, clearance angle within 0.02 Wearable High stability High temperature strength

[View original photo] [BACK]

[Next page]

Product parameters

Materials	UNIMAX
Size	28.480 X 17.025 X 8.500mm
Features	34 grooves of 0.42mm5, bottom width 0.195mm, tooth height 7.850mm, precision 0 to 0.003mm, clearance angle within 0.02
Challenge	The size of the teeth is 34, the head of the teeth is 0.08mm, and the grinding process is difficult.

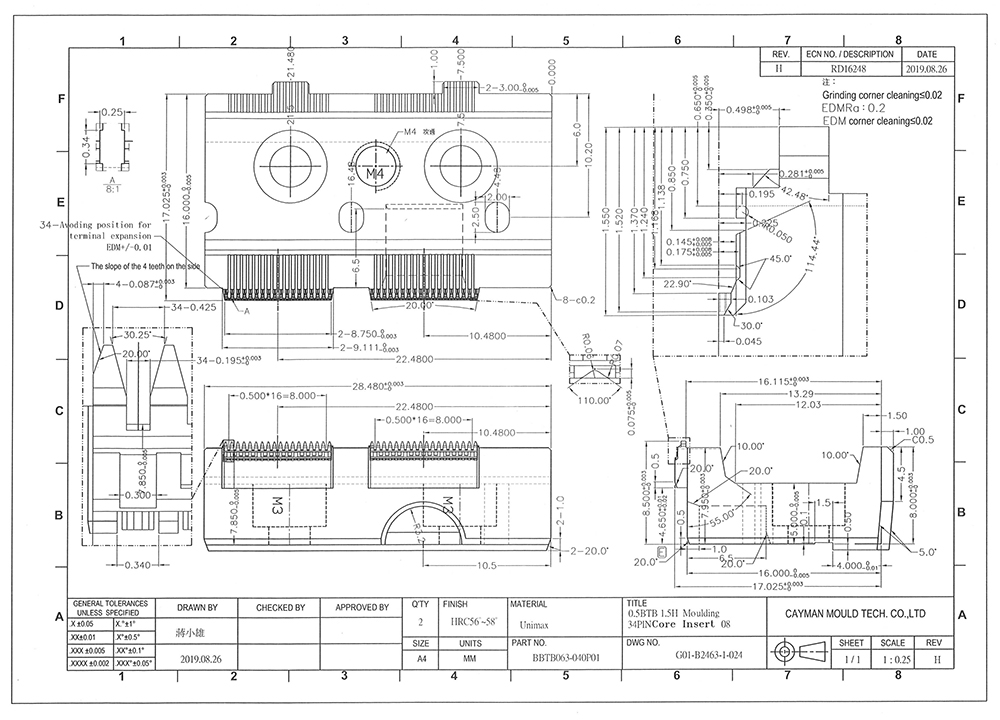

Drawings display

Solution

1. The material is UNIMAX, which has excellent toughness and plasticity in all directions, wear resistance, excellent polishability, good dimensional stability during heat treatment and use, and good high temperature strength.
2. Select high-speed CNC copper machining electrodes to ensure electrode accuracy and smoothness.
3. Select SODICK mirror discharge machine to ensure accuracy and surface texture and clear corners.
4. Select the processing equipment with tight spindle deflection and qualified precision parameters.
5. Select technicians with rich experience in processing technology.
