I. Enterprise Background and Technological Accumulation

Dongguan Kaiman Mould Technology Co., LTD. (referred to as CMT), as a leading enterprise in the field of high-precision mould components, has always taken "0.001mm precision" as its core competitiveness and is dedicated to providing one-stop solutions for high-end manufacturing fields such as electronics, communications, automobiles, and medical care. The company has passed the ISO9001 quality management system certification and established a full-process quality control system covering design, processing and testing to ensure that every product meets strict industrial standards.

From a technical perspective, CMT is equipped with internationally leading five-axis machining centers, slow wire electrical discharge machines, and three-coordinate measuring machines, etc., achieving full digital control from raw materials to finished products. For instance, in the processing of connector molds, through 0.1μ m-level precision control, zero deviation of contact points is ensured, meeting the extreme demand for signal transmission stability of 5G communication equipment.

Ii. Core Products and Technological Breakthroughs

Connector mold series

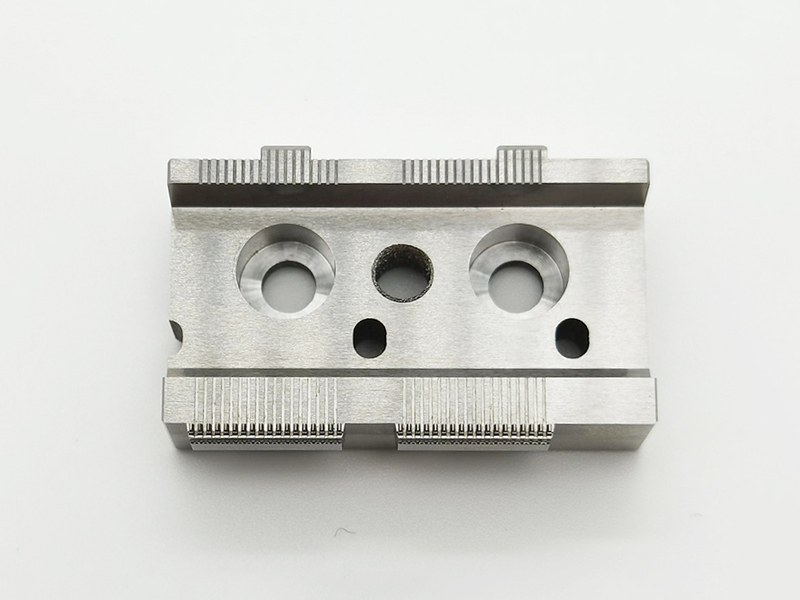

BTB board-to-board connector: Made of UNIMAX super-hard alloy material, it achieves precise forming of 34 0.42mm slots through mirror discharge technology. The slot width tolerance is controlled within ±0.0015mm, and its wear resistance is three times higher than that of traditional materials.

TYPE-C interface mold: In response to the demand for high-speed data transmission, an ELMAX stainless steel material solution was developed. At a groove depth of 0.275mm, the tolerance is only ±0.002mm, effectively reducing the contact resistance.

Automotive connectors: By applying VIKING superalloy and through the design of directional cooling water channels, the problem of mold thermal deformation under high-temperature conditions is solved, and the service life is extended to over 500,000 times.

Precision parts for consumer electronics

Mobile phone earpiece mesh mold: Made of S136 pre-hardened steel and combined with sub-mirror surface discharge technology, it achieves 0.1mm-level micro-hole array processing to ensure zero loss of acoustic performance.

DDR memory connector: Through the combined application of DC53 high-toughness material and multi-station EDM process, the contradiction between miniaturization and high strength is resolved, and the single-piece processing time is reduced by 40%.

Iii. Industry Applications and Value Creation

In the field of new energy vehicles

CMT provides GENZ high-speed connector molds for intelligent driving systems, supporting ADAS sensor data transmission rates up to 10Gbps. By optimizing the mold runner design, the injection molding cycle has been shortened to 8 seconds, helping automakers achieve a leap in the value of connectors per vehicle from 1,000 yuan to 5,000 yuan.

5G communication infrastructure

For the PCIe 5.0 interface mold, the VIKWG ultra-deep cryogenic treatment technology is adopted, making the mold hardness reach HRC62, meeting the strict requirement of high-frequency signal transmission for insertion loss ≤0.5dB. The product has been certified by enterprises such as Huawei and ZTE.

Precision manufacturing of medical equipment

We have developed a SKD61 pre-hardened steel solution for SIM card socket molds. Through deformation control at the 0.005mm level, the injection molding yield of biocompatible materials has been increased to 99.7%, and it has been applied in batches to Medtronic and Siemens medical equipment.

Iv. Quality Control and Innovation System

Full-process traceability system

Each mold is equipped with a unique RFID identifier, which collects processing parameters, inspection data and operation records in real time, achieving full traceability from raw material entry to finished product exit.

Failure Analysis Laboratory

Equipped with metallographic microscopes, X-ray diffractometers and other devices, in-depth analysis is conducted on failure modes such as mold wear and cracks, forming an improvement plan library that includes material optimization and heat treatment process adjustment.

Collaborative innovation among industry, academia and research institutions

We have jointly established a "Precision Manufacturing Joint Laboratory" with South China University of Technology, focusing on the application of nano-coating technology on mold surfaces. We have obtained three invention patents, which have increased the service life of molds by 2 to 3 times.

V. Market Recognition and Customer Cases

Huawei Technologies: The HDMI connector molds supplied by CMT help its 8K TV products achieve a standard deviation of insertion and extraction force of ≤0.3N, reaching the international leading level.

Byd Auto: By adopting the battery pack connector mold developed by CMT, the contact resistance is stabilized below 0.5mΩ, which supports an 8% increase in the driving range of its electric buses.

Dji Innovation: Through the drone gimbal bearing mold provided by CMT, the rotational accuracy is controlled within ±0.002°, significantly enhancing the stability of aerial photography.

Vi. Future Outlook

Facing the wave of Industry 4.0, CMT is promoting three strategic upgrades:

Intelligent transformation: Introduce an AI visual inspection system to achieve a mold defect recognition accuracy rate of 99.9%.

Material innovation: Develop graphene-reinforced composite materials, with the goal of increasing the thermal conductivity of the mold to 200W/(m·K);

Global layout: Build production bases in Vietnam and Mexico, and establish a 72-hour emergency delivery network.
